K12S Serien
SMT-Hochleistungs-Schlüsselschalter

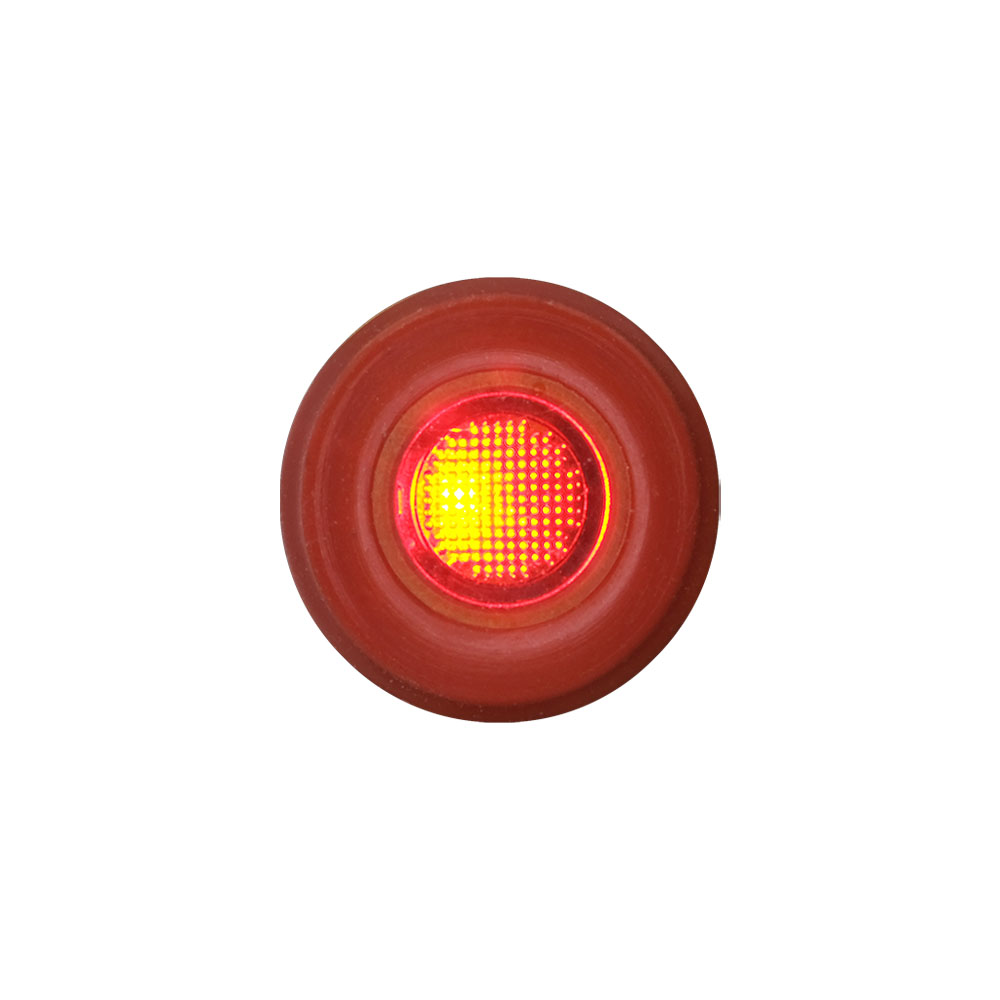

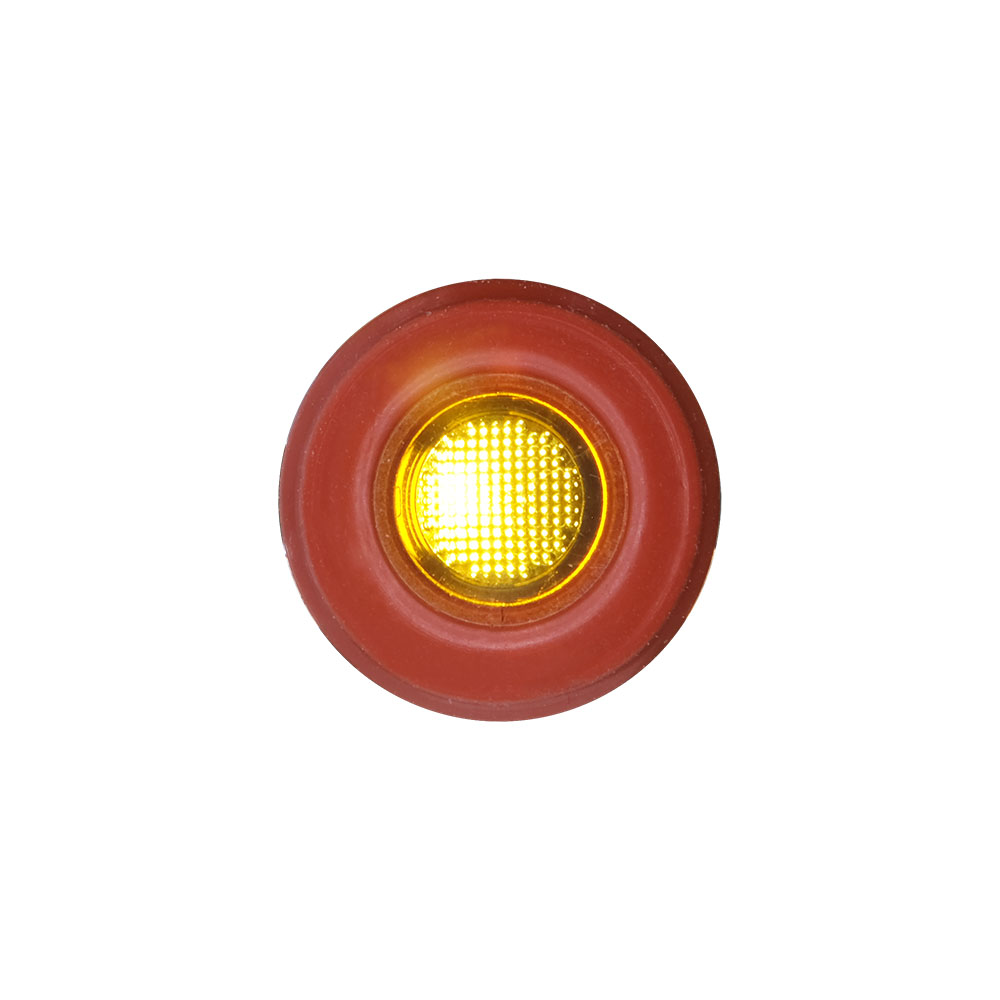

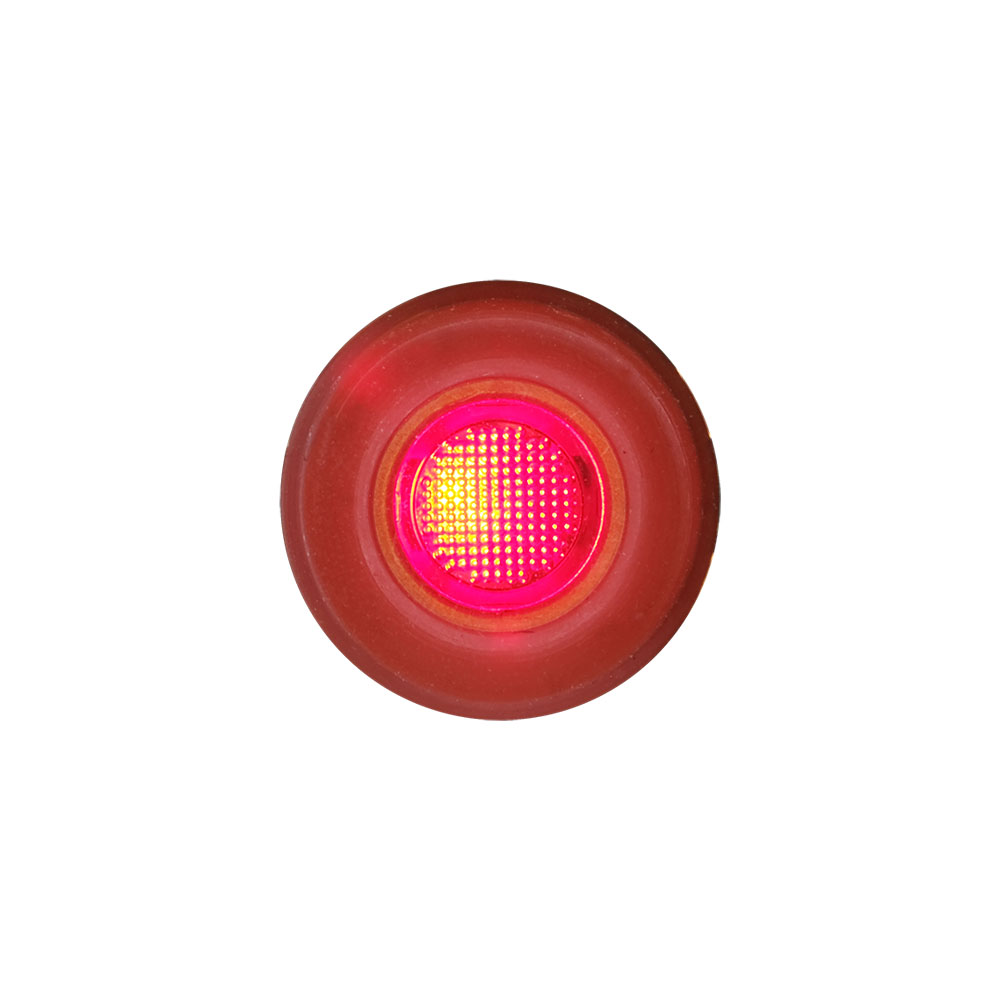

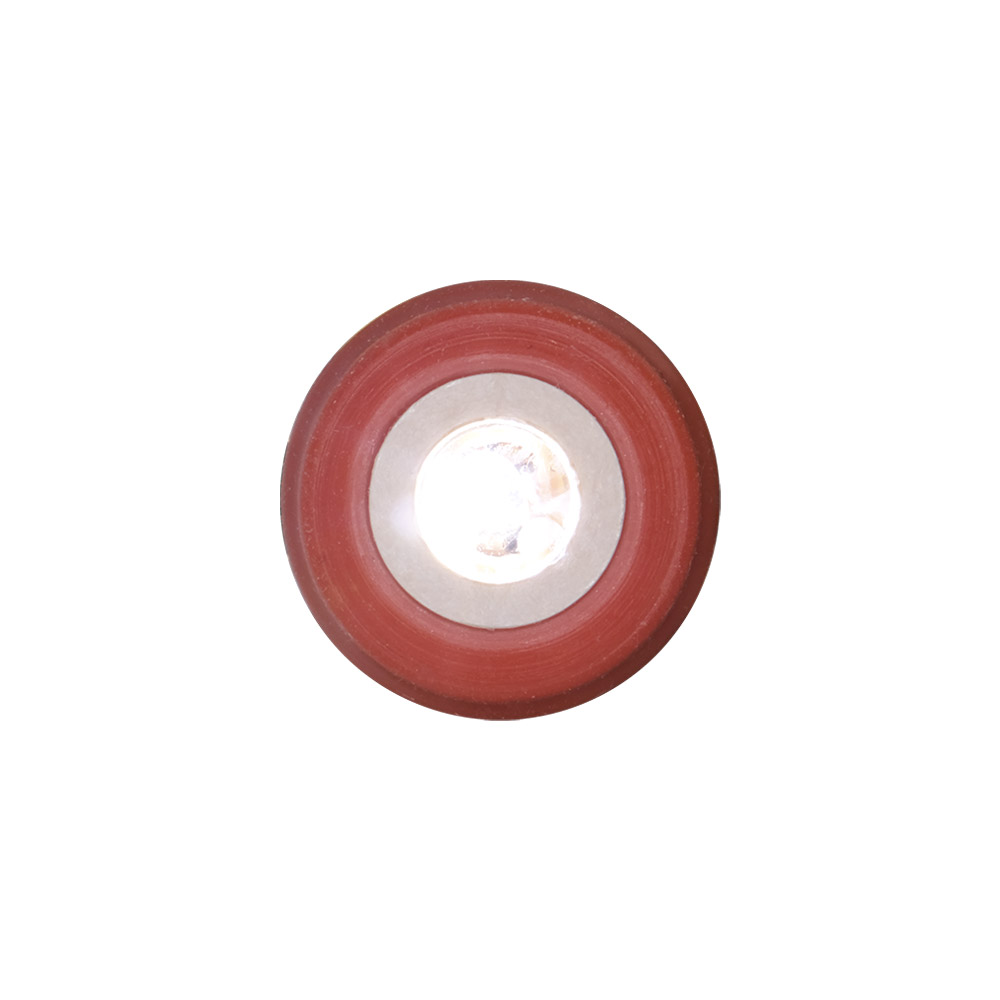

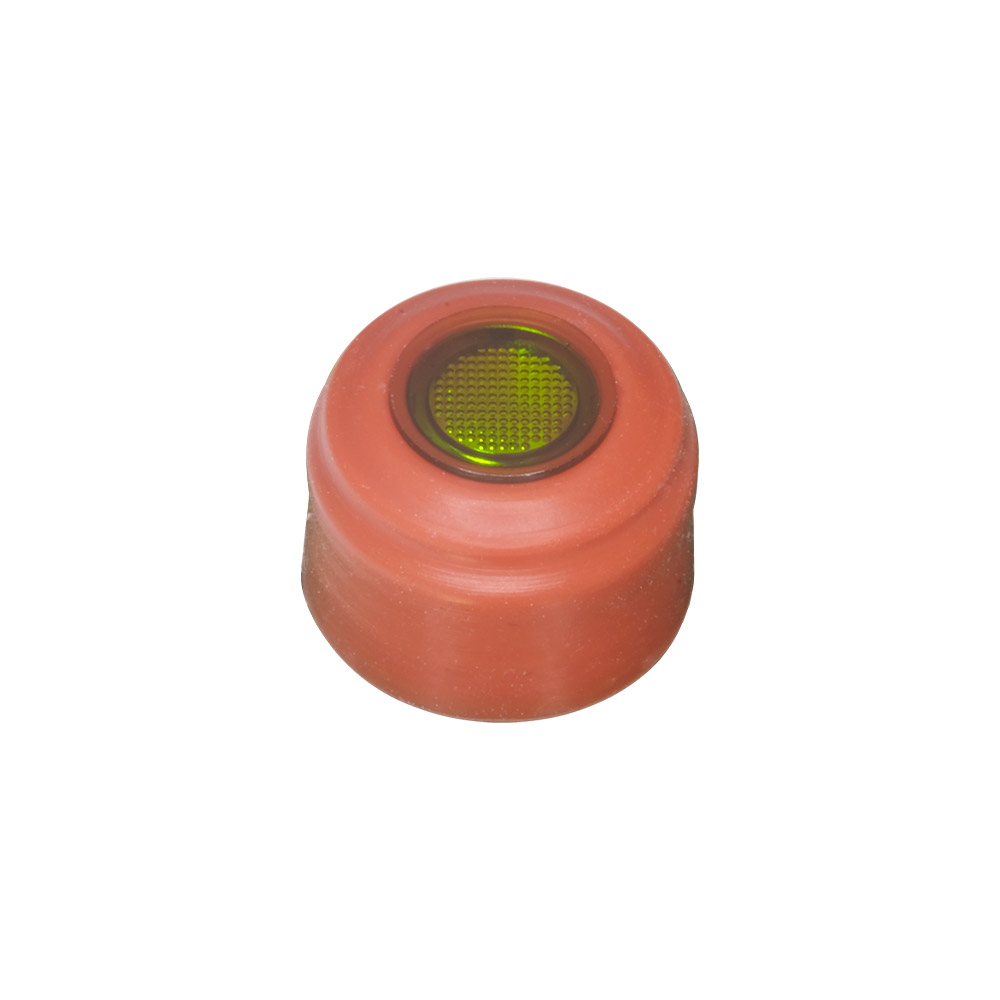

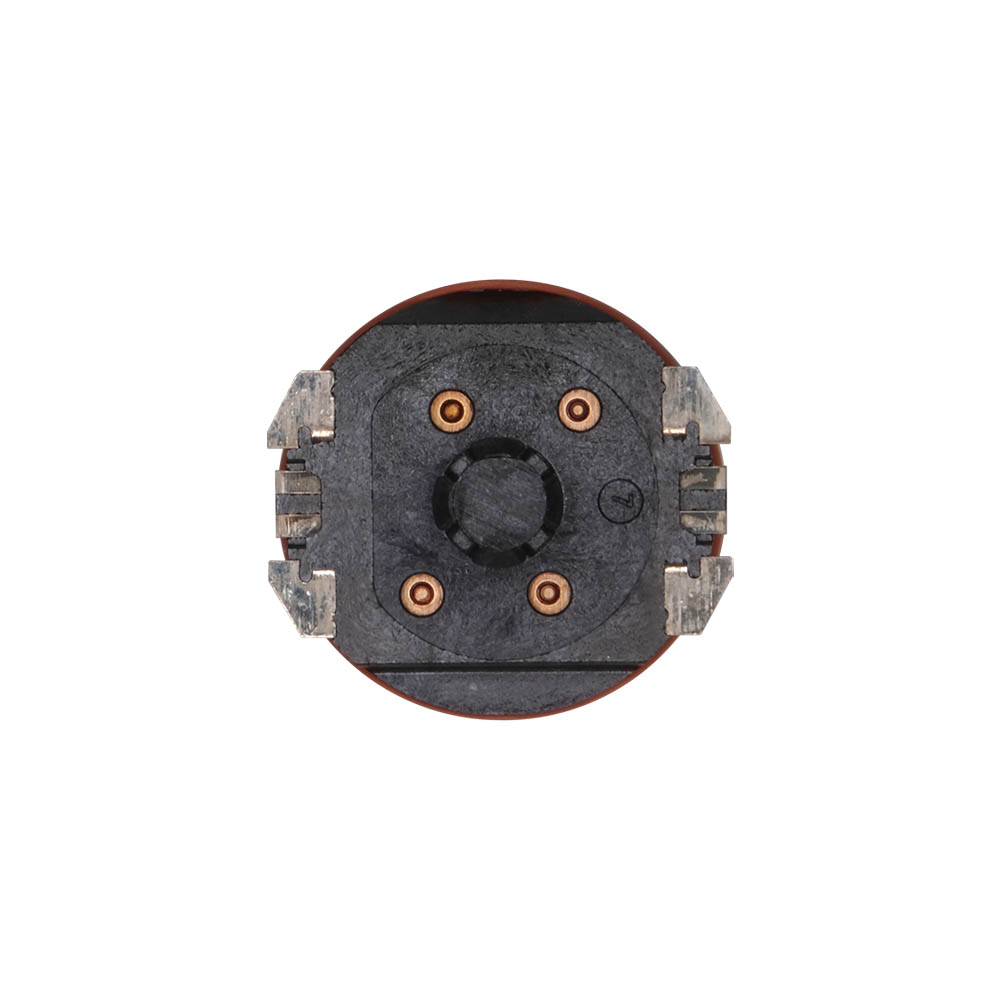

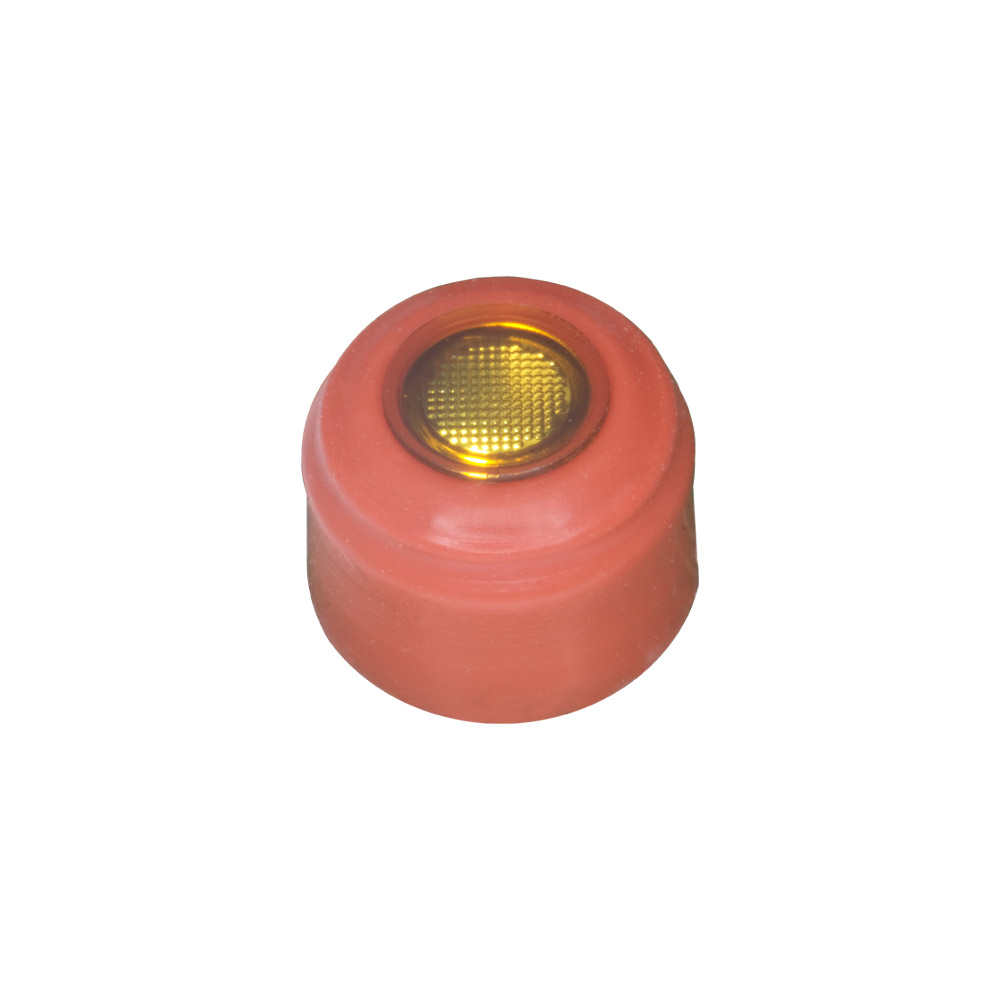

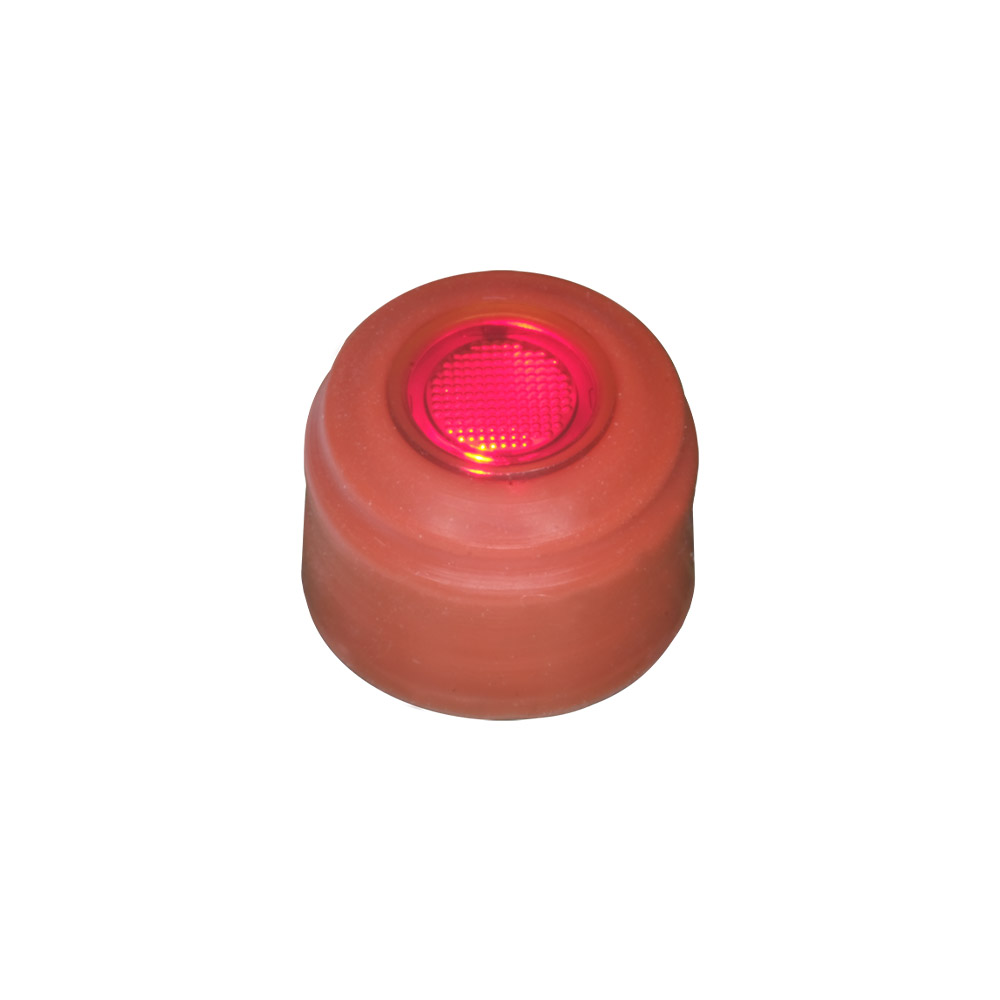

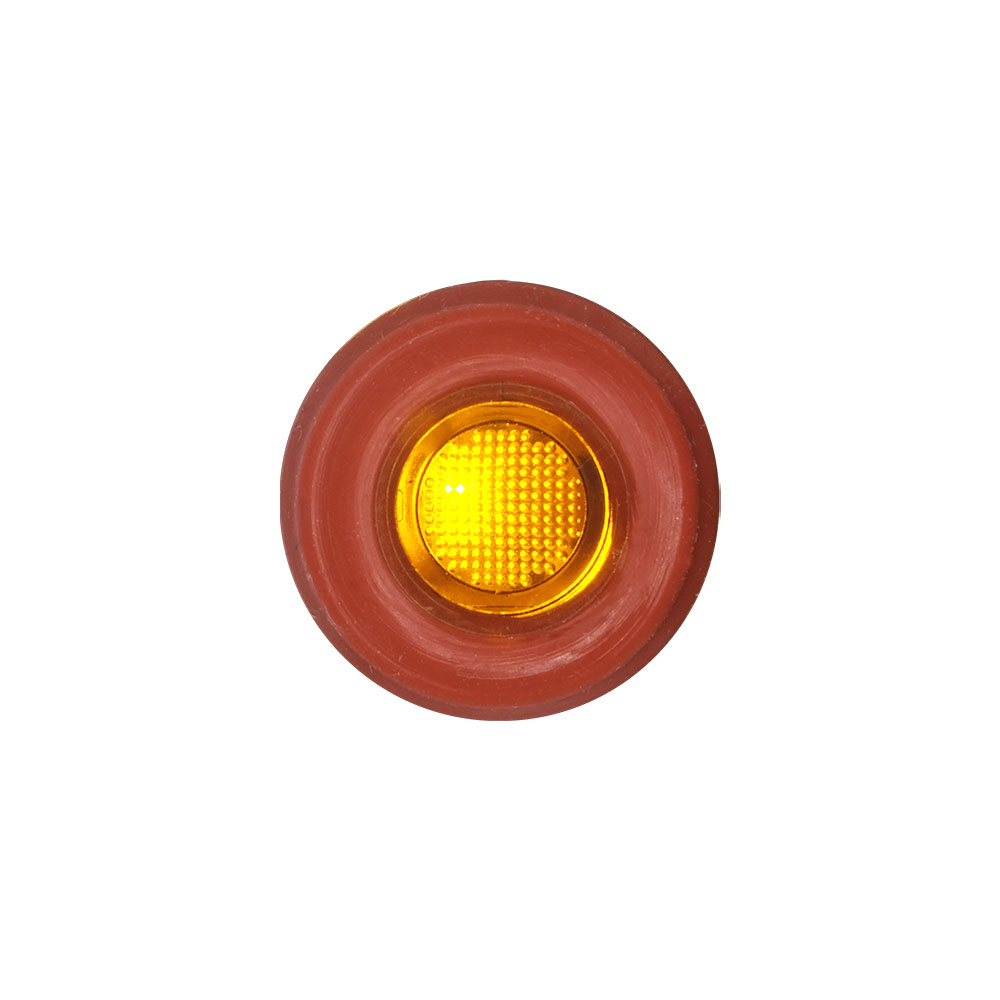

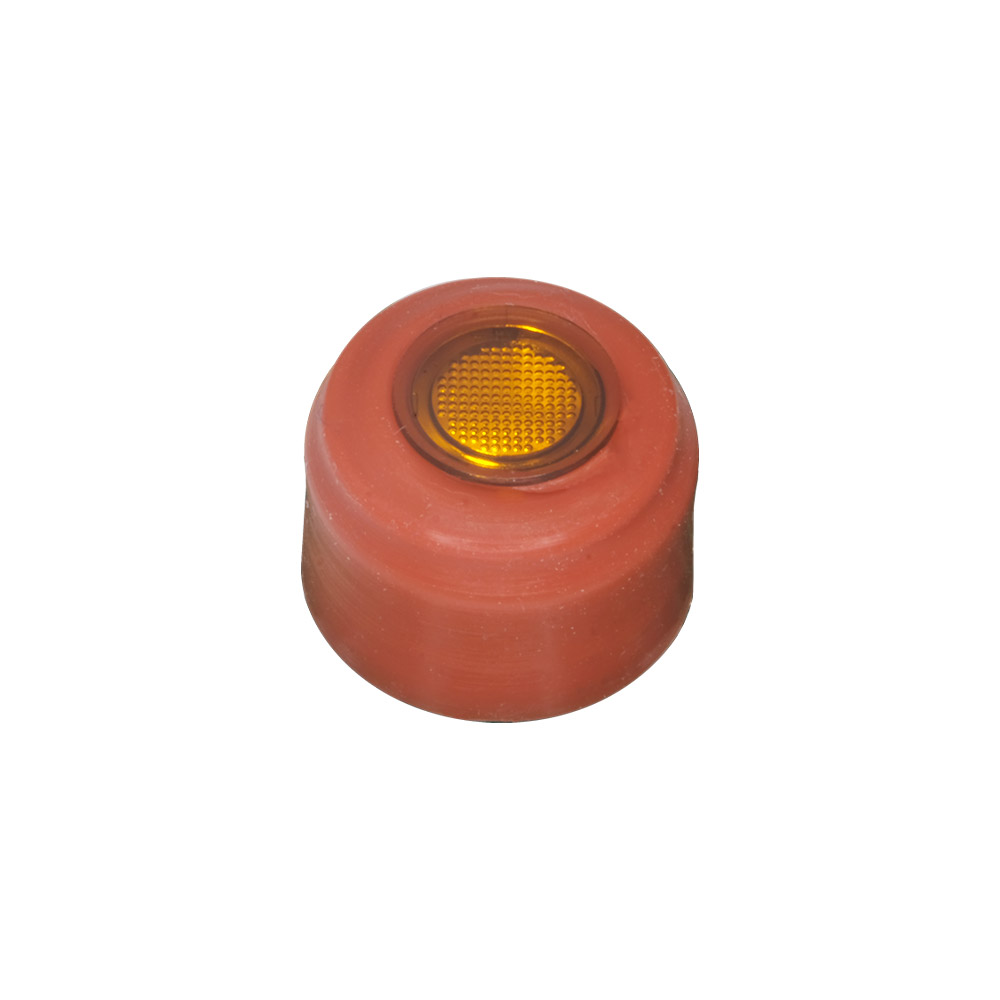

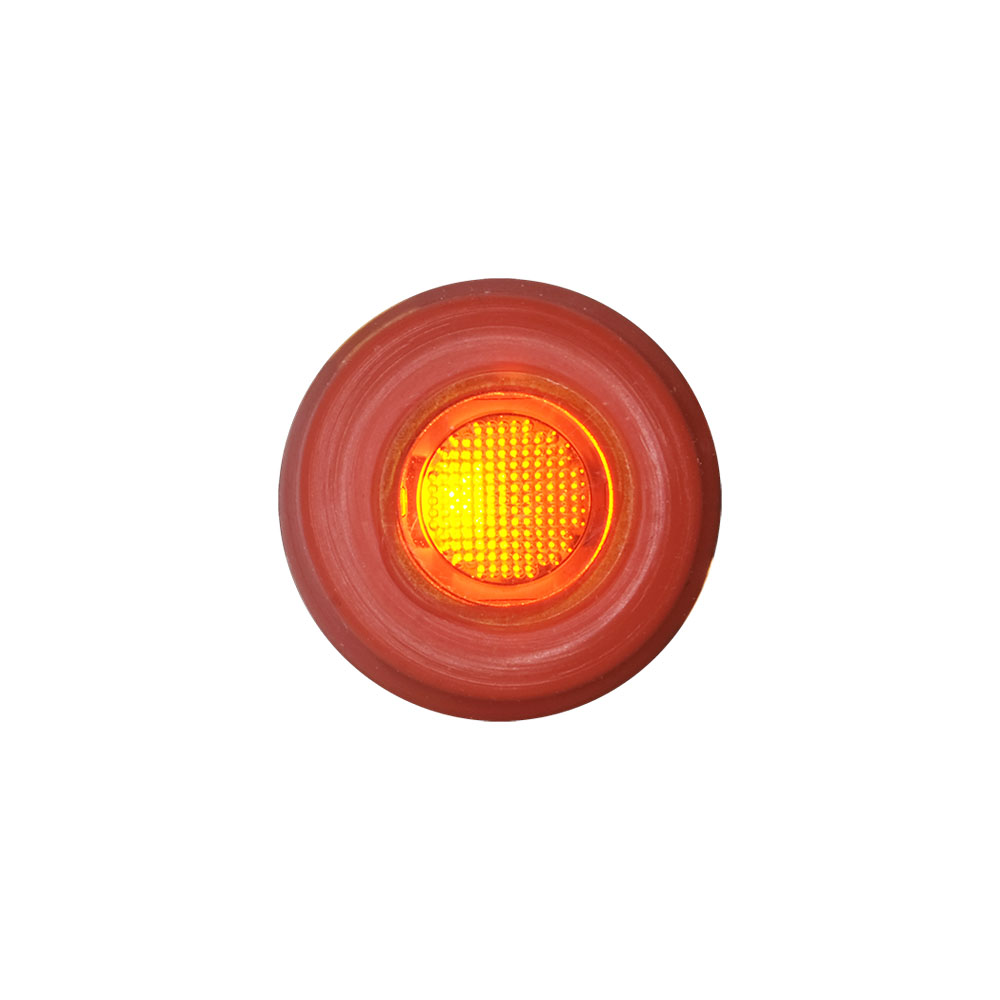

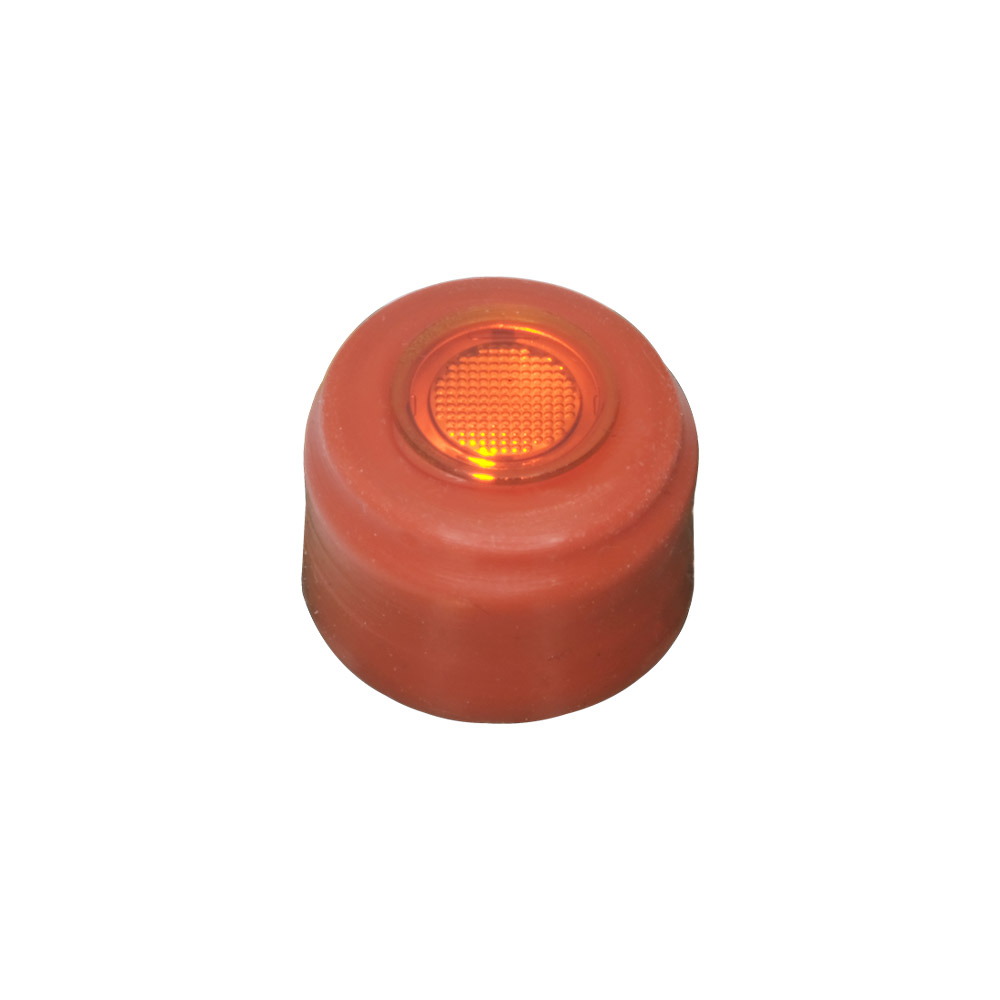

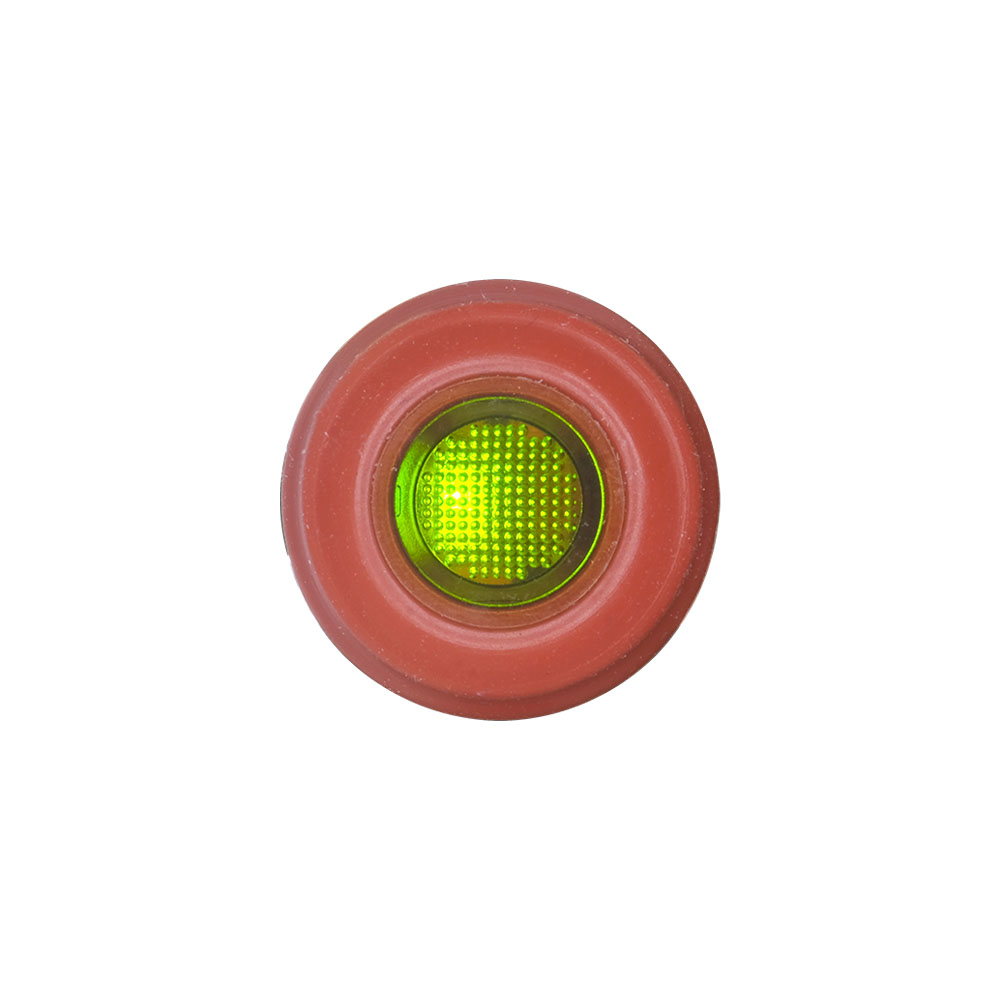

Die Abbildung zeigt die Produktserie und stellt möglicherweise nicht die tatsächliche Teilenummer dar
Toolbox
Downloads
Der leistungsfähige K12S zur Oberflächenmontage von C&K ist ein beleuchteter Schlüsselschalter, der dem Benutzer ein ausgezeichnetes Tastgefühl bietet. Er kann gemäß IP40 oder IP67 gekapselt sein und ist damit für den Einsatz in jeder industriellen, automobilen oder medizinischen Umgebung geeignet – und erfüllt zudem alle RoHS-Anforderungen. Der K12S ist bekannt für seine Zuverlässigkeit, ist in DPST- oder Detektionsausführung erhältlich und mit einem bleifreien Lötprozess zur Oberflächenmontage kompatibel.
Eigenschaften und Vorteile
- Compatible with SMT lead free soldering process
- Excellent tactile feel
- Harsh environment applications - IP67
Typische Anwendungsbereiche
- Automotive, Motorcycles
- Industrial electronics
- Off-road transportation
Technische Daten
-
Contact Rating:
100mA
-
Contact Resistance:
< 100 milliohms
-
Dielectric Strength:
> 300 Vrms
-
Electrical Life:
Between 200,000 and 1,000,000 cycles
-
Insulation Resistance:
> 1,000 megohms
-
Operating Temperature:
-40°C to 85°C
-
Solderability:
Lead free soldering compatible
= Am häufigsten verwendet
| Part Number |
|---|
| Current Rating | Circuit | Mounting Type | Sealing | Illumination | Switch Function | Electrical Life Cycles | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Illumination Type, Color | Termination Style | Packaging |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 100mA (DC) | DPST-NO | SMT | Sealed - IP67 | No/None | Off-Mom On | 200.000 | 30V | Round, Button | Transparent | Gull Wing | Tape & Reel | ||
| 100mA (DC) | DPST-NO | SMT | Sealed - IP67 | No/None | Off-Mom On | 200.000 | 30V | Round, Button | Transparent | Gull Wing | Tape & Reel | ||
| 100mA (DC) | SPST-NO | SMT | Sealed - IP67 | Yes | Off-Mom On | 200.000 | 30V | Round, Button | Transparent | LED, White | Gull Wing | Tape & Reel | |
| 100mA (DC) | SPST-NO | SMT | Sealed - IP67 | No/None | Off-Mom On | 200.000 | 30V | Round, Button | Transparent | Gull Wing | Tape & Reel | ||
| 100mA (DC) | SPST-NO | SMT | Sealed - IP40 | Yes | Off-Mom On | 200.000 | 30V | Round, Button | Transparent | LED, White | Gull Wing | Tape & Reel | |
| 100mA (DC) | SPST-NO | SMT | Sealed - IP40 | Yes | Off-Mom On | 200.000 | 30V | Round, Button | Transparent | LED, White | Gull Wing | Tape & Reel | |
| 100mA (DC) | SPST-NC | SMT | Sealed - IP40 | Yes | On-Mom Off | 1.000.000 | 30V | Round, Button | Transparent | LED, Yellow | Gull Wing | Tape & Reel | |
| 100mA (DC) | SPST-NO | SMT | Sealed - IP40 | Yes | Off-Mom On | 1.000.000 | 30V | Round, Button | Transparent | LED, Yellow | Gull Wing | Tape & Reel | |
| 100mA (DC) | SPST-NO | SMT | Sealed - IP40 | Yes | Off-Mom On | 200.000 | 30V | Round, Button | Transparent | LED, Yellow | Gull Wing | Tape & Reel | |
| 100mA (DC) | SPST-NO | SMT | Sealed - IP40 | Yes | Off-Mom On | 200.000 | 30V | Round, Button | Transparent | LED, Yellow | Gull Wing | Tape & Reel | |
| 100mA (DC) | SPST-NO | SMT | Sealed - IP40 | Yes | Off-Mom On | 200.000 | 30V | Round, Button | Transparent | LED, Yellow | Gull Wing | Tape & Reel | |
| 100mA (DC) | SPST-NC | SMT | Sealed - IP40 | No/None | On-Mom Off | 1.000.000 | 30V | Round, Button | Transparent | Gull Wing | Tape & Reel | ||
| 100mA (DC) | SPST-NO | SMT | Sealed - IP40 | No/None | Off-Mom On | 1.000.000 | 30V | Round, Button | Transparent | Gull Wing | Tape & Reel | ||
| 100mA (DC) | SPST-NO | SMT | Sealed - IP40 | No/None | Off-Mom On | 200.000 | 30V | Round, Button | Transparent | Gull Wing | Tape & Reel | ||
| 100mA (DC) | SPST-NO | SMT | Sealed - IP40 | No/None | Off-Mom On | 200.000 | 30V | Round, Button | Transparent | Gull Wing | Tape & Reel | ||
| 100mA (DC) | SPST-NO | SMT | Sealed - IP40 | No/None | Off-Mom On | 200.000 | 30V | Round, Button | Transparent | Gull Wing | Tape & Reel | ||
| 100mA (DC) | DPST-NC | SMT | Sealed - IP67 | No/None | On-Mom Off | 1.000.000 | 30V | Round, Button | Transparent | Gull Wing | Tape & Reel | ||
| 100mA (DC) | SPST-NO | SMT | Sealed - IP67 | No/None | Off-Mom On | 200.000 | 30V | Round, Button | Transparent | Gull Wing | Tape & Reel | ||
| 100mA (DC) | SPST-NO | SMT | Sealed - IP6x | Yes | Off-Mom | 200.000 | 30V | Round, Button | Transparent | Amber | Gull Wing | Tape & Reel | |
| 100mA (DC) | SPST-NO | SMT | Sealed - IP67 | Yes | Off-Mom On | 200.000 | 30V | Round, Button | Transparent | LED, Green | Gull Wing | Tape & Reel | |
| 100mA (DC) | SPST-NO | SMT | Sealed - IP67 | Yes | Off-Mom On | 200.000 | 30V | Round, Button | Transparent | LED, Green | Gull Wing | Tape & Reel | |
| 100mA (DC) | SPST-NO | SMT | Sealed - IP67 | Yes | Off-Mom On | 200.000 | 30V | Round, Button | Transparent | LED, Green | Gull Wing | Tape & Reel | |
| 100mA (DC) | DPST-NC | SMT | Sealed - IP40 | No/None | On-Mom Off | 1.000.000 | 30V | Round, Button | Transparent | Gull Wing | Tape & Reel | ||
| 100mA (DC) | DPST-NO | SMT | Sealed - IP40 | No/None | Off-Mom On | 1.000.000 | 30V | Round, Button | Transparent | Gull Wing | Tape & Reel | ||
| 100mA (DC) | DPST-NO | SMT | Sealed - IP40 | No/None | Off-Mom On | 200.000 | 30V | Round, Button | Transparent | Gull Wing | Tape & Reel |
