PNP Serien
Versiegelte Drucktastenschalter
![Pushbutton PNP product image](/media/1991/pnp_yellow.png)
![Pushbutton PNP product image](/media/3433/pnp_yellow_top.jpg)

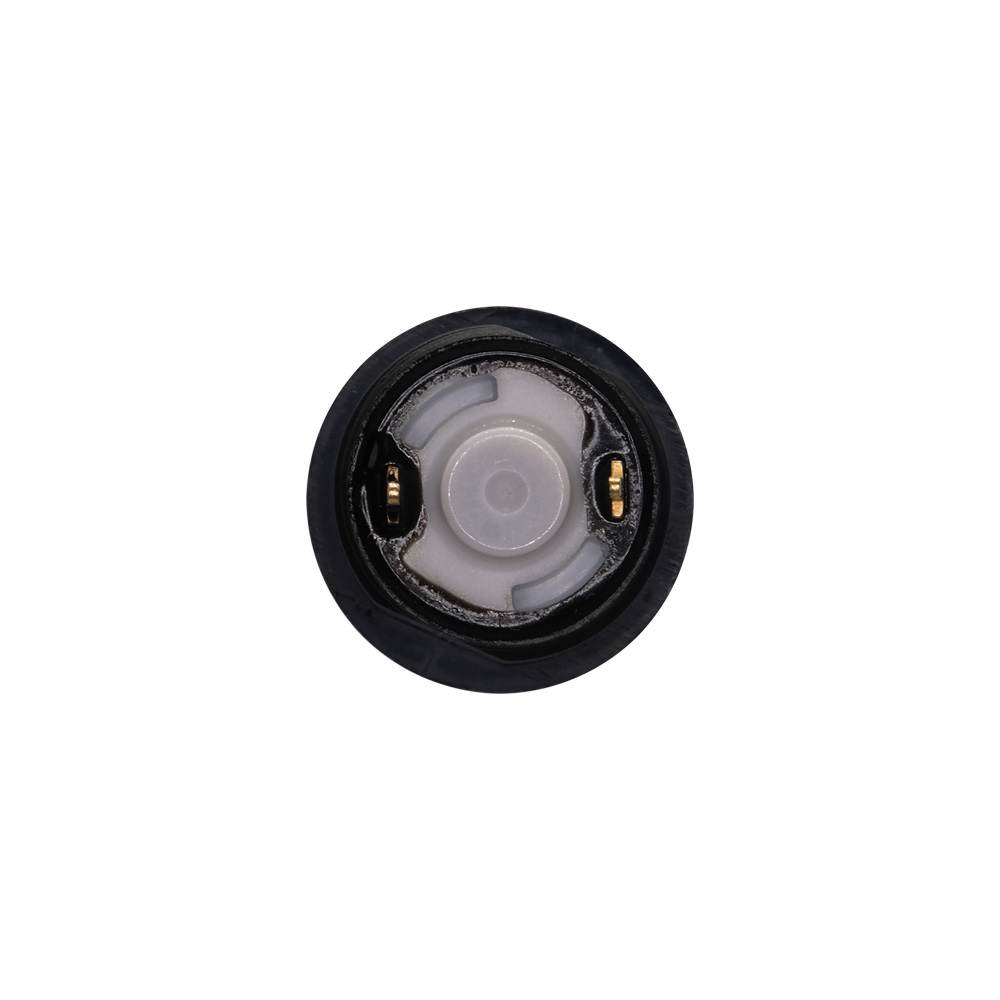

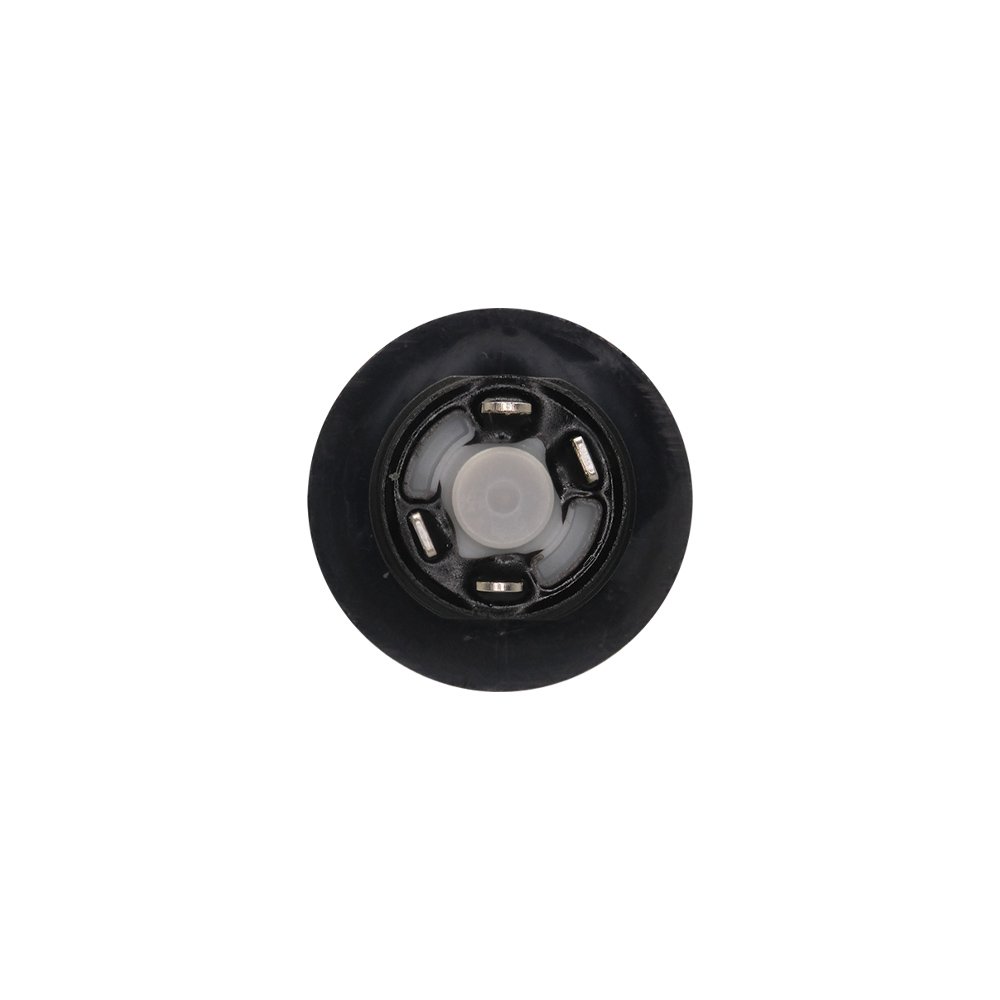

![Pushbutton PNP product image](/media/3434/pnp_yellow_bottom.jpg)
![Pushbutton PNP product image](/media/3435/pnp_black.jpg)
![Pushbutton PNP product image](/media/3436/pnp_black_top.jpg)
![Pushbutton PNP product image](/media/3437/pnp_reddome.jpg)
![Pushbutton PNP product image](/media/3438/pnp_reddome_top.jpg)
![Pushbutton PNP product image](/media/3439/pnp_red.jpg)
![Pushbutton PNP product image](/media/3440/pnp_red_top.jpg)
![Pushbutton PNP product image](/media/3441/pnp_red_bottom.jpg)
![Pushbutton PNP product image](/media/3442/pnp_grey.jpg)
![Pushbutton PNP product image](/media/3443/pnp_greywcable.jpg)
Die Abbildung zeigt die Produktserie und stellt möglicherweise nicht die tatsächliche Teilenummer dar
![img description](/media/1033/ico-tool.png)
![img description](/media/1032/ico-download.png)
Die gekapselten Druckschalter der PNP-Serie von C&K sind so konzipiert, dass sie die Anforderungen von Anwendungen in rauen Umgebungen – wie Industrie-, Offroad-, Schwerlast- und Aufzugsanwendungen – erfüllen, in denen die Schalter wiederholt verwendet werden und Staub, Wasser oder anderen typischerweise schädlichen Elementen ausgesetzt sind. Die PNP-Schalter von C&K sind IP68-gekapselt und RoHS-konform, verfügen über eine lange Lebensdauer (1.000.000 Anwendungen) und sind in einer Vielzahl von Gehäuseausführungen mit einer ohmschen Last von bis zu 5 A erhältlich.
Eigenschaften und Vorteile
- 1,000,000 life cycle
- IP68 sealed to endure harsh environments
- Multiple housing styles
- Snap-action provide positive tactile feedback
Typische Anwendungsbereiche
- Control Grips
- Heavy Equipment
- Industrial Instruments
- Lifts
- Off-Road Panels
Technische Daten
-
Contact Rating:
Option “Q” Silver: 1A/32 VDC resistive (100,000 cycles), 5A/32 VDC resistive (25,000 cycles), 3A/32 VDC resistive (25,000 cycles); Option “G” Gold over Silver: 10mA/5 VDC resistive (1,000,000 cycles)
-
Contact Resistance:
50 milliohms max initial (without wire leads)
-
Dielectric Strength:
1000 V AC min.
-
Insulation Resistance:
1 gigohms @ 500 VDC
-
Operating Life:
1,000,000 cycles
-
Operating Temperature:
-40°C to 85°C
= Am häufigsten verwendet
Part Number |
---|
Current Rating | Circuit | Mounting Type | Sealing | Illumination | Switch Function | Electrical Life Cycles | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Additional Features | Panel Cutout Dimensions | Packaging |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
10mA | SPST NC | Panel Mount, Front, Threaded | Sealed - IP68 | No/None | On-Mom Off | 1.000.000 | 5V | Extended | Red | Thru-hole | Epoxy Sealed Terminals | Circular - 12.30mm Dia | Bulk | |||
5A | SPST NC | Panel Mount, Front, Threaded | Sealed - IP68 | No/None | On-Mom Off | 1.000.000 | 32V | Extended | Red | Solder Lug | Epoxy Sealed Terminals | Circular - 12.30mm Dia | Bulk | |||
5A | SPST NO | Panel Mount, Front, Threaded | Sealed - IP68 | No/None | Off-Mom On | 1.000.000 | 32V | Extended | Red | Solder Lug | Epoxy Sealed Terminals | Circular - 12.30mm Dia | Bulk | |||
10mA | SPDT | Panel Mount, Front, Threaded | Sealed - IP68 | No/None | On-Mom | 1.000.000 | 5V | Extended | Yellow | Thru-hole | Epoxy Sealed Terminals | Circular - 12.30mm Dia | Bulk | |||
5A | SPST NO | Panel Mount, Front, Threaded | Sealed - IP68 | No/None | Off-Mom On | 1.000.000 | 32V | Extended | Yellow | Solder Lug | Epoxy Sealed Terminals | Circular - 12.30mm Dia | Bulk | |||
5A | SPDT | Panel Mount, Front, Threaded | Sealed - IP68 | No/None | On-Mom | 1.000.000 | 32V | Standard | Black | Wire Leads | Epoxy Sealed Terminals | Circular - 12.30mm Dia | Bulk | |||
5A | SPDT | Panel Mount, Front, Threaded | Sealed - IP68 | No/None | On-Mom | 1.000.000 | 32V | Standard | Black | Solder Lug | Epoxy Sealed Terminals | Circular - 12.30mm Dia | Bulk | |||
5A | SPST NC | Panel Mount, Front, Threaded | Sealed - IP68 | No/None | On-Mom Off | 1.000.000 | 32V | Standard | Black | Wire Leads | Epoxy Sealed Terminals | Circular - 12.30mm Dia | Bulk | |||
5A | SPST NC | Panel Mount, Front, Threaded | Sealed - IP68 | No/None | On-Mom Off | 1.000.000 | 32V | Standard | Black | Solder Lug | Epoxy Sealed Terminals | Circular - 12.30mm Dia | Bulk | |||
10mA | SPDT | Panel Mount, Front, Threaded | Sealed - IP68 | No/None | On-Mom | 1.000.000 | 5V | Extended | Black | Thru-hole | Epoxy Sealed Terminals | Circular - 12.30mm Dia | Bulk | |||
5A | SPDT | Panel Mount, Front, Threaded | Sealed - IP68 | No/None | On-Mom | 1.000.000 | 32V | Extended | Black | Solder Lug | Epoxy Sealed Terminals | Circular - 12.30mm Dia | Bulk | |||
5A | SPST NC | Panel Mount, Front, Threaded | Sealed - IP68 | No/None | On-Mom Off | 1.000.000 | 32V | Extended | Black | Solder Lug | Epoxy Sealed Terminals | Circular - 12.30mm Dia | Bulk | |||
5A | SPDT | Panel Mount, Front, Threaded | Sealed - IP68 | No/None | On-Mom | 1.000.000 | 32V | Extended | Red | Solder Lug | Epoxy Sealed Terminals | Circular - 12.30mm Dia | Bulk | |||
5A | SPDT | Panel Mount, Front, Threaded | Sealed - IP68 | No/None | On-Mom | 1.000.000 | 32V | Extended | Yellow | Wire Leads | Epoxy Sealed Terminals | Circular - 12.30mm Dia | Bulk | |||
5A | SPST NO | Panel Mount, Front, Threaded | Sealed - IP68 | No/None | Off-Mom On | 1.000.000 | 32V | Standard | Black | Wire Leads | Epoxy Sealed Terminals | Circular - 12.30mm Dia | Bulk | |||
10mA | SPST NO | Panel Mount, Front, Threaded | Sealed - IP68 | No/None | Off-Mom On | 1.000.000 | 5V | Standard | Black | Thru-hole | Epoxy Sealed Terminals | Circular - 12.30mm Dia | Bulk | |||
5A | SPST NO | Panel Mount, Front, Threaded | Sealed - IP68 | No/None | Off-Mom On | 1.000.000 | 32V | Standard | Black | Solder Lug | Epoxy Sealed Terminals | Circular - 12.30mm Dia | Bulk | |||
10mA | SPDT | Panel Mount, Front, Threaded | Sealed - IP68 | No/None | On-Mom | 1.000.000 | 5V | Standard | Black | Thru-hole | Epoxy Sealed Terminals | Circular - 12.30mm Dia | Bulk | |||
5A | SPDT | Panel Mount, Front, Threaded | Sealed - IP68 | No/None | On-Mom | 1.000.000 | 32V | Standard | Black | Solder Lug | Epoxy Sealed Terminals | Circular - 12.30mm Dia | Bulk | |||
10mA | SPST NC | Panel Mount, Front, Threaded | Sealed - IP68 | No/None | On-Mom Off | 1.000.000 | 5V | Standard | Black | Thru-hole | Epoxy Sealed Terminals | Circular - 12.30mm Dia | Bulk | |||
5A | SPST NC | Panel Mount, Front, Threaded | Sealed - IP68 | No/None | On-Mom Off | 1.000.000 | 32V | Standard | Black | Solder Lug | Epoxy Sealed Terminals | Circular - 12.30mm Dia | Bulk | |||
10mA | SPST NO | Panel Mount, Front, Threaded | Sealed - IP68 | No/None | Off-Mom On | 1.000.000 | 5V | Standard | Black | Thru-hole | Epoxy Sealed Terminals | Circular - 12.30mm Dia | Bulk | |||
5A | SPST NO | Panel Mount, Front, Threaded | Sealed - IP68 | No/None | Off-Mom On | 1.000.000 | 32V | Standard | Black | Solder Lug | Epoxy Sealed Terminals | Circular - 12.30mm Dia | Bulk | |||
10mA | SPDT | Panel Mount, Front, Threaded | Sealed - IP68 | No/None | On-Mom | 1.000.000 | 5V | Standard | Red | Thru-hole | Epoxy Sealed Terminals | Circular - 12.30mm Dia | Bulk | |||
5A | SPDT | Panel Mount, Front, Threaded | Sealed - IP68 | No/None | On-Mom | 1.000.000 | 32V | Standard | Red | Solder Lug | Epoxy Sealed Terminals | Circular - 12.30mm Dia | Bulk |
