R Serien
ROTA-SLIDE® Drehschalter

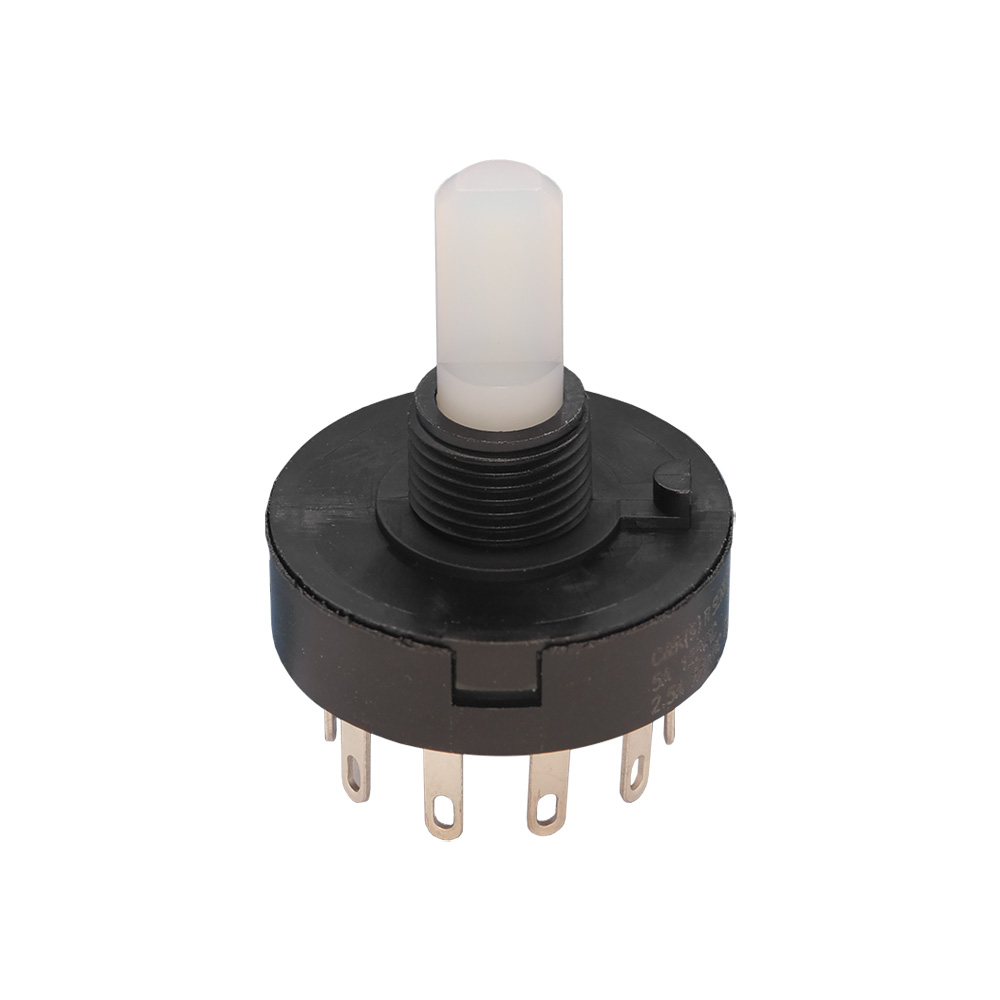

Die Abbildung zeigt die Produktserie und stellt möglicherweise nicht die tatsächliche Teilenummer dar
Toolbox
Downloads
Die Rota-Slide® Drehschalter der R-Serie von C&K werden häufig in Industrieanlagen, tragbaren Werkzeugen und Deckenventilatoren eingesetzt. Die R-Serie ist bekannt für hochwertige, langlebige Schalter mit formschlüssiger Rastung, ist mehrpolig und mit verschiedenen Stellungen erhältlich und eignet sich für die Schalttafel- oder Leiterplattenmontage.
Eigenschaften und Vorteile
- Multi-pole and multi-position
- Panel and PCB mounting
- Positive detent
Typische Anwendungsbereiche
- Ceiling fans
- Industrial equipment
- Portable tools
Technische Daten
-
Contact Rating:
Silver contact material: 5 A @ 125 V AC; 2.5 A @ 250 V AC; 0.5 A @ 125 V DC; 1/8 HP @ 125 and 250 VAC (UL/CSA). See datasheet for additional ratings
-
Contact Resistance:
Below 10 milliohms typ. initial @ 2-4 V DC, 100 mA, for both silver and gold plated contacts
-
Dielectric Strength:
1,000 Vrms min. @ sea level
-
Electrical Life:
10,000 make-and-break cycles at full load
-
Indexing:
36º-one contact models, 10 position max.; two contact models, 5 position max
-
Insulation Resistance:
10⁹ ohms min.
-
Operating Temperature:
-30ºC to 95ºC
-
Certifications:
models available
= Am häufigsten verwendet
- Current Rating
- Circuit per Deck
- Mounting Type
- Sealing
- Illumination
- Number of Positions
- Electrical Life
- Index Stops
- Number of Decks
- Number of Poles per Deck
- Contact Timing
- Voltage Rating - AC
- Voltage Rating - DC
- Actuator Type
- Actuator Length
- Angle of Throw
- Contact Material
- Contact Finish
- Termination Style
- Depth Behind Panel
- Additional Features
| Part Number |
|---|
| Current Rating | Circuit per Deck | Mounting Type | Sealing | Illumination | Number of Positions | Electrical Life | Index Stops | Number of Decks | Number of Poles per Deck | Contact Timing | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Angle of Throw | Contact Material | Contact Finish | Termination Style | Depth Behind Panel | Additional Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 5A (AC), 500mA (DC) | DP4T | Panel Mount, Rear, Threaded | Unsealed | No/None | 4 | 10.000 | Fixed | 1 | 2 | Non-Shorting (BBM) | 125 V | 125 V | Flatted (6.35mm Dia) | 12.70mm | 36° | Copper | Silver | Solder Lug | 14.61mm | Epoxy Sealed Terminals |
| 5A (AC), 500mA (DC) | SP8T | Thru-hole | Unsealed | No/None | 8 | 10.000 | Fixed | 1 | 1 | Non-Shorting (BBM) | 125 V | 125 V | Screwdriver Slot | Flush | 36° | Copper | Silver | PC Pin | 10.29mm | |
| 5A (AC), 500mA (DC) | DP4T | Thru-hole | Unsealed | No/None | 4 | 10.000 | Fixed | 1 | 2 | Non-Shorting (BBM) | 125 V | 125 V | Flatted (6.35mm Dia) | 9.53mm | 36° | Copper | Silver | PC Pin | 10.29mm | |
| 5A (AC), 500mA (DC) | DP4T | Panel Mount, Rear, Threaded | Unsealed | No/None | 4 | 10.000 | Fixed | 1 | 2 | Non-Shorting (BBM) | 125 V | 125 V | Flatted (6.35mm Dia) | 12.70mm | 36° | Copper | Silver | Thru-hole | 10.29mm | |
| 5A (AC), 500mA (DC) | DP5T | Panel Mount, Rear, Threaded | Unsealed | No/None | 5 | 10.000 | Fixed | 1 | 2 | Non-Shorting (BBM) | 125 V | 125 V | Flatted (6.35mm Dia) | 12.70mm | 36° | Copper | Silver | Thru-hole | 10.29mm | |
| 5A (AC), 500mA (DC) | DP5T | Panel Mount, Rear, Threaded | Unsealed | No/None | 5 | 10.000 | Fixed | 1 | 2 | Non-Shorting (BBM) | 125 V | 125 V | Flatted (6.35mm Dia) | 12.70mm | 36° | Copper | Silver | Solder Lug | 14.61mm | |
| 5A (AC), 500mA (DC) | DP5T | Thru-hole | Unsealed | No/None | 5 | 10.000 | Fixed | 1 | 2 | Non-Shorting (BBM) | 125 V | 125 V | Screwdriver Slot | Flush | 36° | Copper | Silver | PC Pin | 10.29mm | |
| 5A (AC), 500mA (DC) | DP5T | Thru-hole | Unsealed | No/None | 5 | 10.000 | Fixed | 1 | 2 | Non-Shorting (BBM) | 125 V | 125 V | Screwdriver Slot | Flush | 36° | Copper | Silver | PC Pin | 10.29mm | Epoxy Sealed Terminals |
| 5A (AC), 500mA (DC) | DP4T | Panel Mount, Rear, Threaded | Unsealed | No/None | 4 | 10.000 | Fixed | 1 | 2 | Non-Shorting (BBM) | 125 V | 125 V | Flatted (6.35mm Dia) | 12.70mm | 36° | Copper | Silver | Solder Lug | 14.61mm | |
| 5A (AC), 500mA (DC) | DP4T | Thru-hole | Unsealed | No/None | 4 | 10.000 | Fixed | 1 | 2 | Non-Shorting (BBM) | 125 V | 125 V | Flatted (6.35mm Dia) | 12.70mm | 36° | Copper | Silver | PC Pin | 10.29mm | |
| 5A / 2.5A AC | DP3T | Panel Mount, Rear, Threaded | Unsealed | No/None | 3 | 10.000 | Fixed | 1 | 2 | Non-shorting contacts | 125 V / 250 V | Flatted | .500" | 36° | Copper Alloy | Silver | Solder Lug | .600" / (15,25) | ||
| 5A (AC), 500mA (DC) | DP3T | Panel Mount, Rear, Threaded | Unsealed | No/None | 3 | 10.000 | Fixed | 1 | 2 | Non-Shorting (BBM) | 125 V | 125 V | Flatted (6.35mm Dia) | 12.70mm | 36° | Copper | Silver | Thru-hole | 10.29mm | |
| 5A (AC), 500mA (DC) | DP3T | Panel Mount, Rear, Threaded | Unsealed | No/None | 3 | 10.000 | Fixed | 1 | 2 | Non-Shorting (BBM) | 125 V | 125 V | Flatted (6.35mm Dia) | 12.70mm | 36° | Copper | Silver | Thru-hole | 10.29mm | Epoxy Sealed Terminals |
| 5A / 2.5A AC | DP3T | Panel Mount, Rear, Threaded | Unsealed | No/None | 3 | 10.000 | Fixed | 1 | 2 | Non-shorting contacts | 125 V / 250 V | Flatted | .500" | 36° | Copper Alloy | Silver | Solder Lug | .600" / (15,25) | ||
| 5A / 2.5A AC | DP3T | Panel Mount, Rear, Threaded | Unsealed | No/None | 3 | 10.000 | Fixed | 1 | 2 | Non-shorting contacts | 125 V / 250 V | Flatted | .500" | 36° | Copper Alloy | Silver | Wire Leads | .300" / (7,63) | ||
| 5A / 2.5A AC | DP3T | Thru-hole | Unsealed | No/None | 3 | 10.000 | Fixed | 1 | 2 | Non-shorting contacts | 125 V / 250 V | Screwdriver Slot | .016" | 36° | Copper Alloy | Silver | PC Thru-hole | .580" / (14,74) | ||
| 5A (AC), 500mA (DC) | DP3T | Thru-hole | Unsealed | No/None | 3 | 10.000 | Fixed | 1 | 2 | Non-Shorting (BBM) | 125 V | 125 V | Screwdriver Slot | Flush | 36° | Copper | Silver | PC Pin | 10.29mm | Epoxy Sealed Terminals |
| 0.4VA (AC/DC) | DP3T | Thru-hole | Unsealed | No/None | 3 | 10.000 | Fixed | 1 | 2 | Non-Shorting (BBM) | 20 V | 20 V | Flatted (6.35mm Dia) | 9.53mm | 36° | Copper | Gold | PC Pin | 10.29mm | Epoxy Sealed Terminals |
| 5A / 2.5A AC | DP3T | Thru-hole | Unsealed | No/None | 3 | 10.000 | Fixed | 1 | 2 | Non-shorting contacts | 125 V / 250 V | Flatted | .375" | 36° | Copper Alloy | Silver | PC Thru-hole | .580" / (14,74) | ||
| 0.4VA (AC/DC) | DP3T | Thru-hole | Unsealed | No/None | 3 | 10.000 | Fixed | 1 | 2 | Non-Shorting (BBM) | 20 V | 20 V | Flatted (6.35mm Dia) | 12.70mm | 36° | Copper | Gold | PC Pin | 10.29mm | |
| 5A (AC), 500mA (DC) | DP3T | Thru-hole | Unsealed | No/None | 3 | 10.000 | Fixed | 1 | 2 | Non-Shorting (BBM) | 125 V | 125 V | Flatted (6.35mm Dia) | 12.70mm | 36° | Copper | Silver | PC Pin | 10.29mm | |
| 5A (AC), 500mA (DC) | DP3T | Thru-hole | Unsealed | No/None | 3 | 10.000 | Fixed | 1 | 2 | Non-Shorting (BBM) | 125 V | 125 V | Flatted (6.35mm Dia) | 12.70mm | 36° | Copper | Silver | PC Pin | 10.29mm | Epoxy Sealed Terminals |
| 5A (AC), 500mA (DC) | DP4T | Panel Mount, Rear, Threaded | Unsealed | No/None | 4 | 10.000 | Fixed | 1 | 2 | Non-Shorting (BBM) | 125 V | 125 V | Flatted (6.35mm Dia) | 12.70mm | 36° | Copper | Silver | Wire Leads | Epoxy Sealed Terminals | |
| 5A / 2.5A AC | DP5T | Thru-hole | Unsealed | No/None | 5 | 10.000 | Fixed | 1 | 2 | Non-shorting contacts | 125 V / 250 V | Flatted | .500" | 36° | Copper Alloy | Silver | PC Thru-hole | .580" / (14,74) | ||
| 5A (AC), 500mA (DC) | SP10T | Not Applicable | Unsealed | No/None | 10 | 10.000 | Continuous | 1 | 1 | Non-Shorting (BBM) | 125 V | 125 V | Flatted (6.35mm Dia) | 9.53mm | 36° | Copper | Silver | Solder Lug | Epoxy Sealed Terminals |
