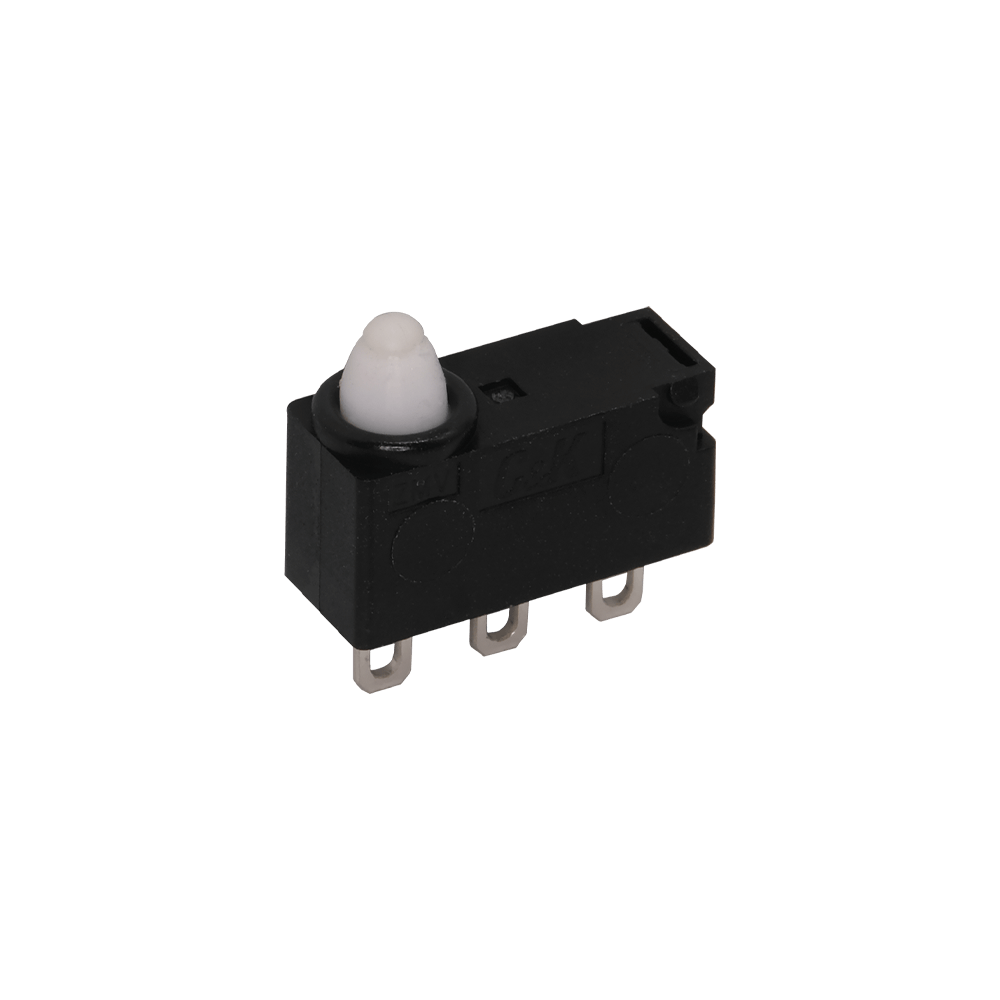

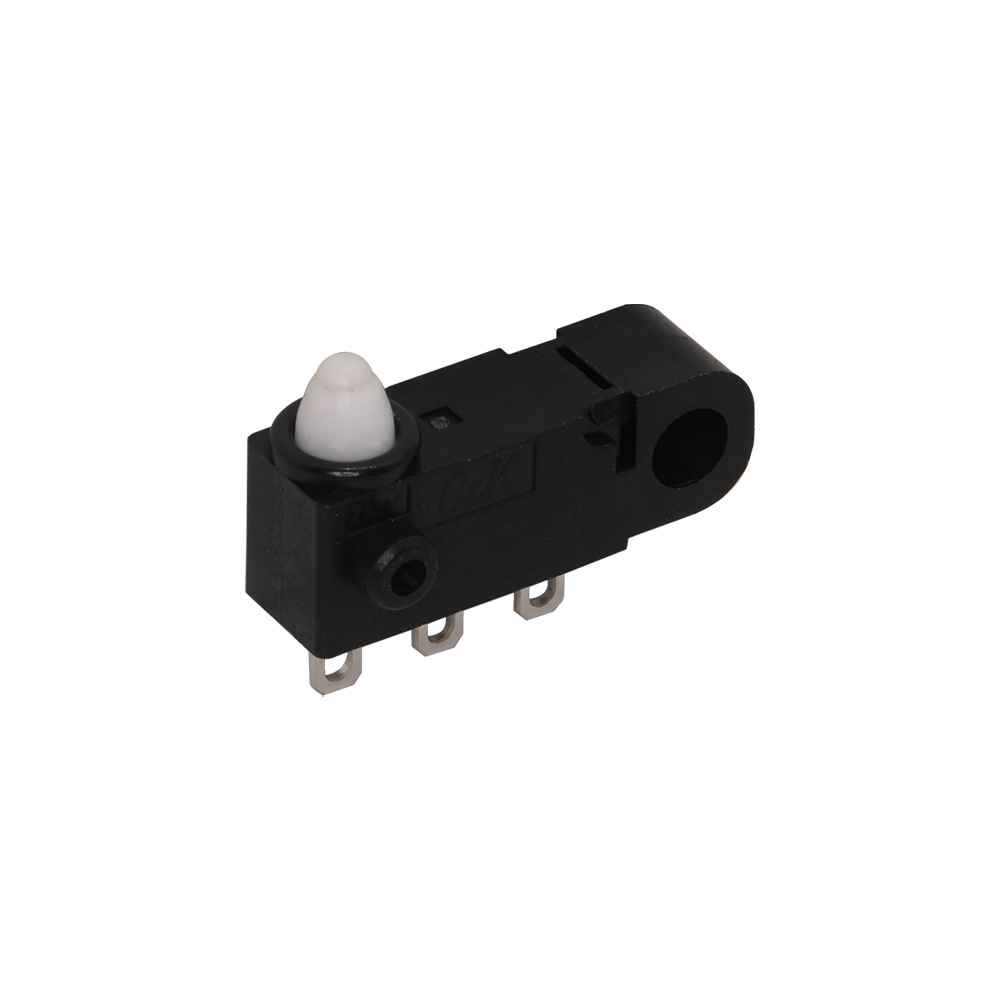

ZMV Serien
Schnappschalter in miniatur Größe
Die Abbildung zeigt die Produktserie und stellt möglicherweise nicht die tatsächliche Teilenummer dar
Toolbox
Downloads
Die Mini-Schnappschalter der ZMV-Serie von C&K werden häufig in Automobil-, Medizin-, Industrie- und IoT-Geräten verwendet. Sie sind mit einem einzigartigen Stiftkolben ausgestattet, dessen Betätigung aus jedem Winkel möglich ist.
Eigenschaften und Vorteile
- Adequate stroke setting for reliable & precision ON or OFF switching
- Compact size – ideal when space is limited
- High contact reliability to support from low range switching loads
- Internal spring design return – ensures the actuator is restored to the same position every time. These features yield consistent operation over the long life of these switches
- IP67 for standalone switch except the metal terminal part; Full IP67 protection when potted with wire version
- Pin plunger version can be actuated from an angle
- RoHS compatible & compliant
Typische Anwendungsbereiche
- Automotive
- Home appliances
- Industrial
- IoT devices
- Medical
Technische Daten
-
Contact Rating:
3A @ 12VDC / 24 VDC / 125 VAC / 250 VAC
-
Dielectric Strength:
Min 500VAC (50-60Hz)/minute between Live Parts
-
Electrical Life:
1,000,000 cycles @ 10mA / 100,000 cycles @ 3A
-
Insulation Resistance:
100 MΩ min.
-
Operating Temperature:
–40ºC to 85ºC
= Am häufigsten verwendet
| Part Number |
|---|
| Current Rating | Circuit | Mounting Type | Sealing | Illumination | Switch Function | Electrical Life Cycles | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Termination Style | Additional Features | Operating Force, Torque | Release Force | Pretravel | Differential Travel | Overtravel | Packaging |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3A (AC/DC) | SPDT | Thru-hole | Unsealed | No/None | On-Mom On | 100.000 | 125/250VAC | 12/24VDC | Lever | Thru-hole | 120gf | 1.2mm | Bulk | ||||
| 3A (AC/DC) | SPDT | Thru-hole | Unsealed | No/None | On-Mom On | 100.000 | 125/250VAC | 12/24VDC | Lever | Thru-hole | 120gf | 1.2mm | Bulk | ||||
| 3A (AC/DC) | SPDT | Thru-hole | Unsealed | No/None | On-Mom On | 100.000 | 125/250VAC | 12/24VDC | Lever | Thru-hole | 120gf | 1.2mm | Bulk | ||||
| 3A (AC/DC) | SPDT | Thru-hole | Unsealed | No/None | On-Mom On | 100.000 | 125/250VAC | 12/24VDC | Lever | Thru-hole | 150gf | 1.0mm | Bulk | ||||
| 3A (AC/DC) | SPDT | Thru-hole | Unsealed | No/None | On-Mom On | 100.000 | 125/250VAC | 12/24VDC | Lever | Thru-hole | 150gf | 1.0mm | Bulk | ||||
| 3A (AC/DC) | SPDT | Thru-hole | Unsealed | No/None | On-Mom On | 100.000 | 125/250VAC | 12/24VDC | Lever | Thru-hole | 150gf | 1.0mm | Bulk | ||||
| 3A (AC/DC) | SPDT | Thru-hole | Unsealed | No/None | On-Mom On | 100.000 | 125/250VAC | 12/24VDC | Lever | Thru-hole | 150gf | 1.0mm | Bulk | ||||
| 3A (AC/DC) | SPDT | Thru-hole | Unsealed | No/None | On-Mom On | 100.000 | 125/250VAC | 12/24VDC | Lever | Thru-hole | 168gf | 1.5mm | Bulk | ||||
| 3A (AC/DC) | SPDT | Thru-hole | Unsealed | No/None | On-Mom On | 100.000 | 125/250VAC | 12/24VDC | Lever | Thru-hole | 168gf | 1.5mm | Bulk | ||||
| 3A (AC/DC) | SPDT | Thru-hole | Unsealed | No/None | On-Mom On | 100.000 | 125/250VAC | 12/24VDC | Lever | Thru-hole | 168gf | 1.5mm | Bulk | ||||
| 3A (AC/DC) | SPDT | Thru-hole | Unsealed | No/None | On-Mom On | 100.000 | 125/250VAC | 12/24VDC | Lever | Thru-hole | 220gf | 1.1mm | Bulk | ||||
| 3A (AC/DC) | SPDT | Thru-hole | Unsealed | No/None | On-Mom On | 100.000 | 125/250VAC | 12/24VDC | Lever | Thru-hole | 220gf | 1.1mm | Bulk | ||||
| 3A (AC/DC) | SPDT | Thru-hole | Unsealed | No/None | On-Mom On | 100.000 | 125/250VAC | 12/24VDC | Lever | Thru-hole | 220gf | 1.1mm | Bulk | ||||
| 3A (AC/DC) | SPDT | Thru-hole | Unsealed | No/None | On-Mom On | 100.000 | 125/250VAC | 12/24VDC | Lever | Thru-hole | 95gf | 1.5mm | Bulk | ||||
| 3A (AC/DC) | SPDT | Thru-hole | Unsealed | No/None | On-Mom On | 100.000 | 125/250VAC | 12/24VDC | Lever | Thru-hole | 95gf | 1.5mm | Bulk | ||||
| 3A (AC/DC) | SPDT | Thru-hole | Unsealed | No/None | On-Mom On | 100.000 | 125/250VAC | 12/24VDC | Lever | Thru-hole | 95gf | 1.5mm | Bulk | ||||
| 3A (AC/DC) | SPDT | Thru-hole | Unsealed | No/None | On-Mom On | 100.000 | 125/250VAC | 12/24VDC | Round (Pin Plunger) | Thru-hole | 150gf | 1.1mm | Bulk | ||||
| 3A (AC/DC) | SPDT | Thru-hole | Unsealed | No/None | On-Mom On | 100.000 | 125/250VAC | 12/24VDC | Round (Pin Plunger) | Thru-hole | 150gf | 1.1mm | Bulk | ||||
| 3A (AC/DC) | SPDT | Thru-hole | Unsealed | No/None | On-Mom On | 100.000 | 125/250VAC | 12/24VDC | Round (Pin Plunger) | Thru-hole | 150gf | 1.1mm | Bulk | ||||
| 3A (AC/DC) | SPDT | Thru-hole | Unsealed | No/None | On-Mom On | 100.000 | 125/250VAC | 12/24VDC | Lever | Thru-hole | 150gf | 1.0mm | Bulk | ||||
| 3A (AC/DC) | SPDT | Thru-hole | Unsealed | No/None | On-Mom On | 100.000 | 125/250VAC | 12/24VDC | Lever | Thru-hole | 120gf | 1.2mm | Bulk | ||||
| 3A (AC/DC) | SPDT | Thru-hole | Unsealed | No/None | On-Mom On | 100.000 | 125/250VAC | 12/24VDC | Lever | Thru-hole | 200gf | 1.4mm | Bulk | ||||

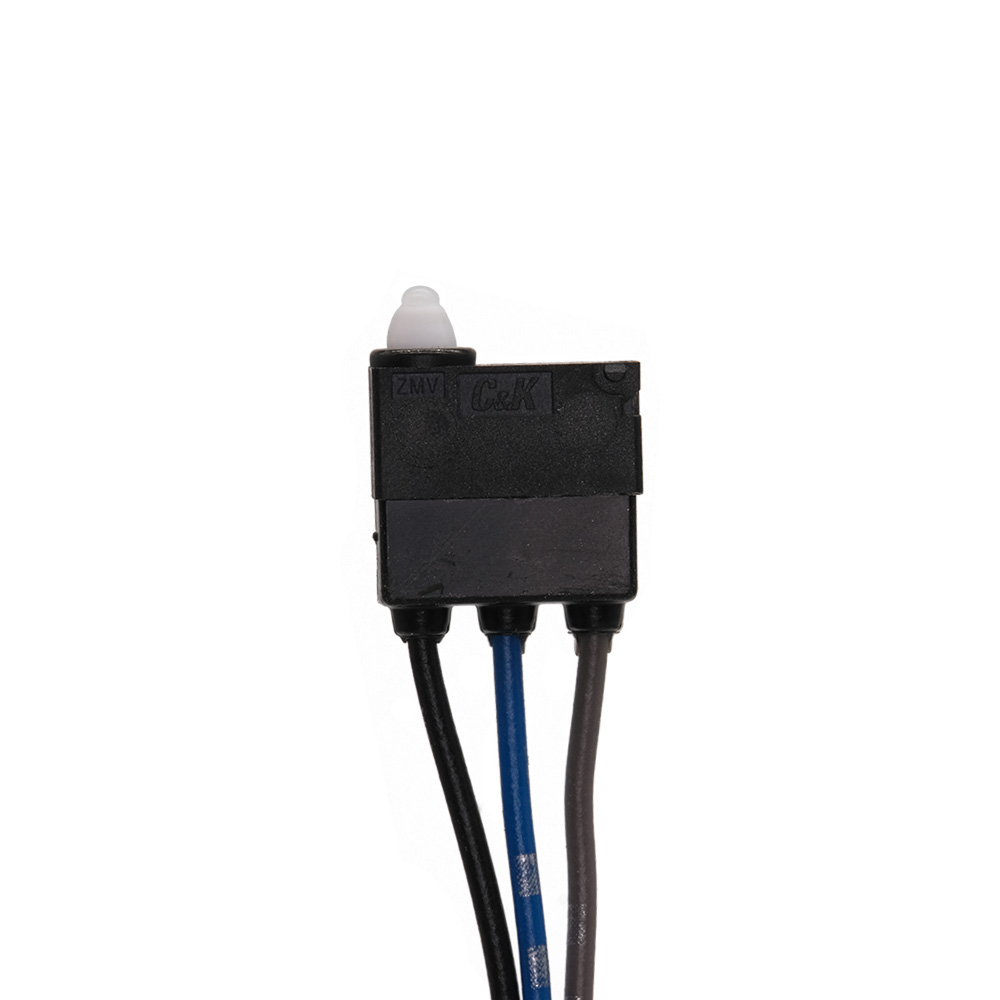

| 3A (AC/DC) | SPDT | Chassis mount | Unsealed | No/None | On-Mom On | 100.000 | 125/250VAC | 12/24VDC | Round (Pin Plunger) | Wire Leads | 150gf | 1.1mm | Bulk | ||||
| 3A (AC/DC) | SPST- NO | Chassis mount | Unsealed | No/None | On-Mom On | 100.000 | 125/250VAC | 12/24VDC | Round (Pin Plunger) | Wire Leads | 150gf | 1.1mm | Bulk | ||||
| 3A (AC/DC) | SPDT | Thru-hole | Unsealed | No/None | On-Mom On | 100.000 | 125/250VAC | 12/24VDC | Lever | Thru-hole | 168gf | 1.5mm | Bulk |
