K5V Serien
Beleuchteter Taktschalter

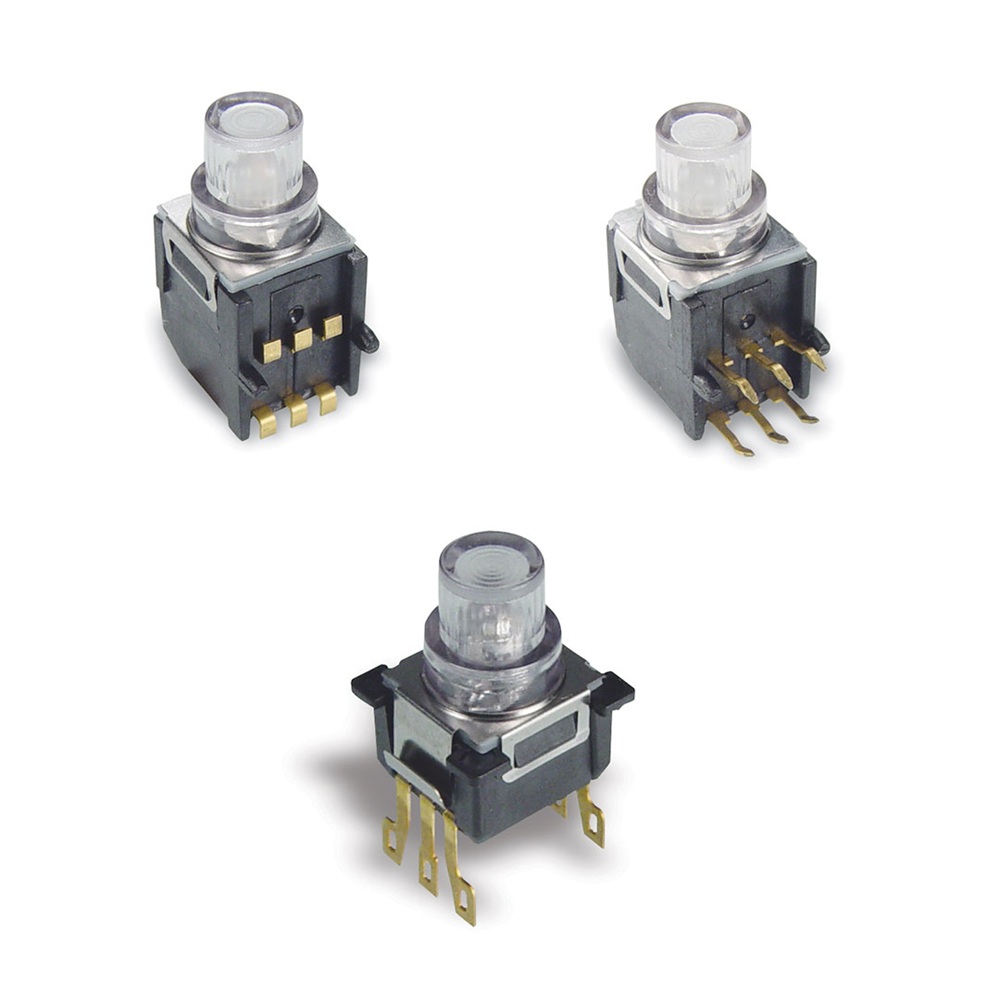

Tactile K5V product image

Die Abbildung zeigt die Produktserie und stellt möglicherweise nicht die tatsächliche Teilenummer dar

img description Toolbox
img description Downloads
Technischen Support kontaktieren
Händlerbestand prüfen
Muster anfordern
Der beleuchtete Kurzhubtaster der K5V-Serie von C&K verfügt über hohe, helle LEDs, die kundenspezifische Anforderungen erfüllen. Mit seinem reduzierten Platzbedarf auf der Leiterplatte und der ausgezeichneten Ergonomie eignet sich der K5V perfekt für Anwendungen in den Bereichen Netzwerkinfrastruktur, Automobil und Medizin.

Eigenschaften und Vorteile

  • Excellent ergonomics
  • High bright leds
  • Reduced space usage on board

Typische Anwendungsbereiche

  • Automotive
  • Medical
  • Network infrastructure

Technische Daten

  • Contact Rating:

    100mA

  • Contact Resistance:

    < 150 milliohms

  • Electrical Life:

    25,000 cycles

  • Insulation Resistance:

    > 1000 megohms

  • Operating Temperature:

    -40°C to 85°C

  • Solderability:

    SMT: Compatible with the lead free soldering profile; THT: Compatible with the lead free soldering profile; PM: Low wattage soldering iron (25-50 watts max), solder time 3 seconds max

= Am häufigsten verwendet

Ausgewählte Teile vergleichen
Part Number
K5V1BU43P
K5V1BU43T
K5V1RD43T
K5V1RG43T
K5V1GN43T
K5V1WS43T
K5V1YG43T
K5V1YE43T
K5V4GN43G
K5V4WH43G
K5V4YG43G
K5V1YG43G
K5V1YG43P
K5V1YG43S
K5V2CL43G
K5V2CL43T
K5V2GN43TP3
K5V2RD43T
K5V2WX43G
K5V2WX43T
K5V2YE43T
K5V1YE43G
K5V1YE43P
K5V1RD43G
K5V1RD43P
Current Rating Circuit Mounting Type Sealing Illumination Switch Function Electrical Life Cycles Actuator Type Actuator Height off PCB, from Pins Actuator Orientation Termination Style Footprint Illumination Voltage (Nominal) Illumination Type, Color Operating Force Additional Features Packaging
100mA @ 32VDC SPDT Panel Mount Sealed - IP40 Yes On-Mom 25.000 Translucent 13.35mm Top Actuated Solder Lug 9.70mm x 8.50mm LED, Blue 400gf Tactile Feedback Bulk
100mA @ 32VDC SPDT Thru-hole, Right Angle Sealed - IP40 Yes On-Mom 25.000 Translucent 12.40mm Side Actuated Thru-hole 9.45mm x 8.00mm LED, Blue 400gf Tactile Feedback Bulk
100mA @ 32VDC SPDT Thru-hole, Right Angle Sealed - IP40 Yes On-Mom 25.000 Translucent 12.40mm Side Actuated Thru-hole 9.45mm x 8.00mm LED, Red 400gf Tactile Feedback Bulk
100mA @ 32VDC SPDT Thru-hole, Right Angle Sealed - IP40 Yes On-Mom 25.000 Translucent 12.40mm Side Actuated Thru-hole 9.45mm x 8.00mm LED, Red/Green 400gf Tactile Feedback Bulk
100mA @ 32VDC SPDT Thru-hole, Right Angle Sealed - IP40 Yes On-Mom 25.000 Translucent 12.40mm Side Actuated Thru-hole 9.45mm x 8.00mm LED, Green 400gf Tactile Feedback Bulk
100mA @ 32VDC SPDT Thru-hole, Right Angle Sealed - IP40 Yes On-Mom 25.000 Translucent 12.40mm Side Actuated Thru-hole 9.45mm x 8.00mm LED, White 400gf Tactile Feedback Bulk
100mA @ 32VDC SPDT Thru-hole, Right Angle Sealed - IP40 Yes On-Mom 25.000 Translucent 12.40mm Side Actuated Thru-hole 9.45mm x 8.00mm LED, Green/Yellow 400gf Tactile Feedback Bulk
100mA @ 32VDC SPDT Thru-hole, Right Angle Sealed - IP40 Yes On-Mom 25.000 Translucent 12.40mm Side Actuated Thru-hole 9.45mm x 8.00mm LED, Yellow 400gf Tactile Feedback Bulk
100mA @ 32VDC SPDT Surface Mount, Right Angle Sealed - IP40 Yes On-Mom 25.000 Translucent 12.40mm Side Actuated Gull Wing 9.45mm x 8.00mm LED, Green 400gf Tactile Feedback Bulk
100mA @ 32VDC SPDT Surface Mount, Right Angle Sealed - IP40 Yes On-Mom 25.000 Translucent 12.40mm Side Actuated Gull Wing 9.45mm x 8.00mm LED, White 400gf Tactile Feedback Bulk
100mA @ 32VDC SPDT Surface Mount, Right Angle Sealed - IP40 Yes On-Mom 25.000 Translucent 12.40mm Side Actuated Gull Wing 9.45mm x 8.00mm LED, Green/Yellow 400gf Tactile Feedback Bulk
100mA @ 32VDC SPDT Panel Mount Sealed - IP40 Yes On-Mom 25.000 Translucent 13.35mm Top Actuated Solder Lug 9.70mm x 8.50mm LED, Green/Yellow 400gf Tactile Feedback Bulk
100mA @ 32VDC SPDT Thru-hole, Right Angle Sealed - IP40 Yes On-Mom 25.000 Translucent 12.40mm Side Actuated Thru-hole 9.45mm x 8.00mm LED, Green/Yellow Tactile Feedback Bulk
100mA @ 32VDC SPDT Thru-hole, Right Angle Sealed - IP40 No/None On-Mom 25.000 Translucent 12.40mm Side Actuated Thru-hole 9.45mm x 8.00mm 400gf Tactile Feedback Bulk
100mA @ 32VDC SPDT Thru-hole, Right Angle Sealed - IP40 Yes On-Mom 25.000 Translucent 12.40mm Side Actuated Thru-hole 9.45mm x 8.00mm LED, Green 400gf Tactile Feedback Bulk
100mA @ 32VDC SPDT Thru-hole, Right Angle Sealed - IP40 Yes On-Mom 25.000 Translucent 12.40mm Side Actuated Thru-hole 9.45mm x 8.00mm LED, Red 400gf Tactile Feedback Bulk
100mA @ 32VDC SPDT Thru-hole, Right Angle Sealed - IP40 Yes On-Mom 25.000 Translucent 12.40mm Side Actuated Thru-hole 9.45mm x 8.00mm LED, White 400gf Tactile Feedback Bulk
100mA @ 32VDC SPDT Thru-hole, Right Angle Sealed - IP40 Yes On-Mom 25.000 Translucent 12.40mm Side Actuated Thru-hole 9.45mm x 8.00mm LED, Yellow 400gf Tactile Feedback Bulk
100mA @ 32VDC SPDT Panel Mount Sealed - IP40 Yes On-Mom 25.000 Translucent 13.35mm Top Actuated Solder Lug 9.70mm x 8.50mm LED, Yellow 400gf Tactile Feedback Bulk
100mA @ 32VDC SPDT Panel Mount Sealed - IP40 Yes On-Mom 25.000 Translucent 13.35mm Top Actuated Solder Lug 9.70mm x 8.50mm LED, Red 400gf Tactile Feedback Bulk
