PTS645 Serien
6 mm Taktschalter
![Tactile PTS645 product image](/media/1269/pts645.png)
![Tactile PTS645 product image](/media/3270/pts645sh70smtr92-lfs.jpg)
![Tactile PTS645 product image](/media/3271/pts645sh70smtr92-lfs_top.jpg)
![Tactile PTS645 product image](/media/3272/pts645sh70smtr92-lfs_bottom.jpg)

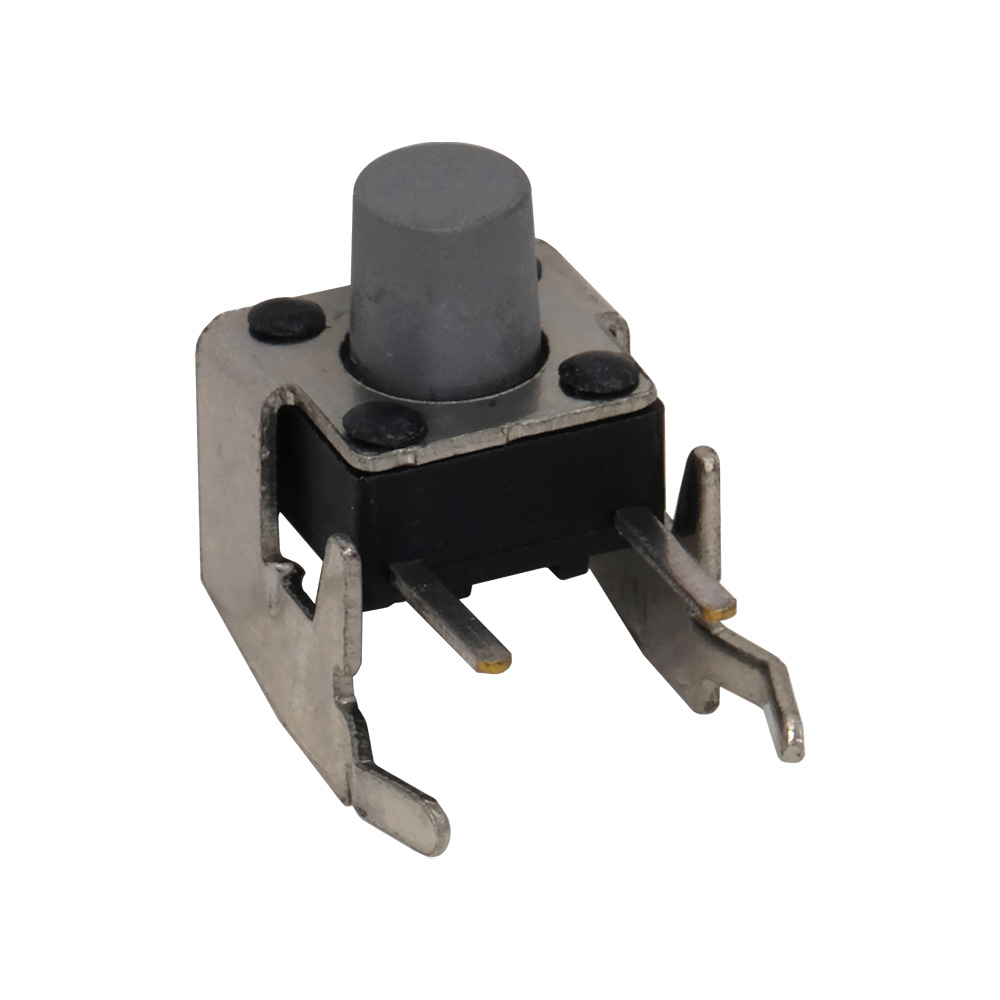

![Tactile PTS645 product image](/media/3273/pts645vh58-2-lfs.jpg)
![Tactile PTS645 product image](/media/3274/pts645vh58-2-lfs_top.jpg)
![Tactile PTS645 product image](/media/3275/pts645vh58-2-lfs_bottom.jpg)
Die Abbildung zeigt die Produktserie und stellt möglicherweise nicht die tatsächliche Teilenummer dar
![img description](/media/1033/ico-tool.png)
![img description](/media/1032/ico-download.png)
Die Schalter der PTS645-Serie von C&K sind 6-mm-Kurzhubtaster, die entwickelt wurden, um Entwicklern von Anwendungen in den Bereichen Konsumgüter, Instrumente und Computerausrüstung langlebige, reaktionsschnelle Schalter zu bieten. PTS645-Schalter sind sehr kompakt (6 x 6 mm) und in einer Vielzahl von Aktorlängen mit einer Auswahl an Betätigungskräften erhältlich, sodass der Schalter an die Anforderungen jedes Produkts angepasst werden kann.
Eigenschaften und Vorteile
- Choice of actuation force
- Compact size 6 x 6 mm
- Variety of actuator lengths
Typische Anwendungsbereiche
- Computer products
- Consumer products
- Instrumentation
Technische Daten
-
Contact Rating:
50mA
-
Contact Resistance:
100 milliohms
-
Dielectric Strength:
250 V AC min.
-
Electrical Life:
100,000 cycles
-
Insulation Resistance:
> 100,000 megohms
-
Operating Temperature:
-40°C to 85°C
-
Solderability:
Preheating to 100°C for 45 sec. max. Keep flux flush with top surface of PCB; do not apply to component side of PCB and area where terminals are located. Soldering to 255°C for 5 sec. max. Clean by brushing on solder surface. Do not clean switch with solvents.
= Am häufigsten verwendet
Part Number |
---|
Current Rating | Circuit | Mounting Type | Sealing | Illumination | Switch Function | Electrical Life Cycles | Actuator Type | Actuator Height off PCB, from Pins | Actuator Orientation | Termination Style | Footprint | Illumination Voltage (Nominal) | Illumination Type, Color | Operating Force | Additional Features | Packaging |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
50mA @ 12VDC | SPST-NO | Surface Mount | Sealed - IP40 | No/None | Off-Mom | 100.000 | Standard | 4.30mm | Top Actuated | Gull Wing | 6.00mm x 6.00mm | 160gf | Tape & Reel | |||
50mA @ 12VDC | SPST-NO | Thru-hole, Right Angle | Sealed - IP40 | No/None | Off-Mom | 100.000 | Standard | 3.85mm | Side Actuated | Thru-hole | 7.50mm x 7.10mm | 260gf | Bulk | |||
50mA @ 12VDC | SPST-NO | Surface Mount | Sealed - IP40 | No/None | Off-Mom | 100.000 | Standard | 4.30mm | Top Actuated | Gull Wing | 6.00mm x 6.00mm | 260gf | Tape & Reel | |||
50mA @ 12VDC | SPST-NO | Surface Mount | Sealed - IP40 | No/None | Off-Mom | 100.000 | Standard | 5.00mm | Top Actuated | Gull Wing | 6.00mm x 6.00mm | 260gf | Tape & Reel | |||
50mA @ 12VDC | SPST-NO | Thru-hole, Right Angle | Sealed - IP40 | No/None | Off-Mom | 100.000 | Standard | 5.85mm | Side Actuated | Thru-hole | 7.50mm x 7.10mm | 200gf | Bulk | |||
50mA @ 12VDC | SPST-NO | Thru-hole, Right Angle | Sealed - IP40 | No/None | Off-Mom | 100.000 | Standard | 8.35mm | Side Actuated | Thru-hole | 7.50mm x 7.10mm | 200gf | Bulk | |||
50mA @ 12VDC | SPST-NO | Thru-hole, Right Angle | Sealed - IP40 | No/None | Off-Mom | 100.000 | Standard | 6.15mm | Side Actuated | Thru-hole | 7.50mm x 7.10mm | 130gf | Bulk | |||
50mA @ 12VDC | SPST-NO | Thru-hole, Right Angle | Sealed - IP40 | No/None | Off-Mom | 100.000 | Standard | 6.15mm | Side Actuated | Thru-hole | 7.50mm x 7.10mm | 160gf | Bulk | |||
50mA @ 12VDC | SPST-NO | Thru-hole, Right Angle | Sealed - IP40 | No/None | Off-Mom | 100.000 | Standard | 6.15mm | Side Actuated | Thru-hole | 7.50mm x 7.10mm | 200gf | Bulk | |||
50mA @ 12VDC | SPST-NO | Thru-hole, Right Angle | Sealed - IP40 | No/None | Off-Mom | 100.000 | Standard | 6.15mm | Side Actuated | Thru-hole | 7.50mm x 7.10mm | 260gf | Bulk | |||
50mA @ 12VDC | SPST-NO | Thru-hole, Right Angle | Sealed - IP40 | No/None | Off-Mom | 100.000 | Standard | 3.15mm | Side Actuated | Thru-hole | 7.50mm x 7.10mm | 260gf | Bulk | |||
50mA @ 12VDC | SPST-NO | Thru-hole, Right Angle | Sealed - IP40 | No/None | Off-Mom | 100.000 | Standard | 8.35mm | Side Actuated | Thru-hole | 7.50mm x 7.10mm | 260gf | Bulk | |||
50mA @ 12VDC | SPST-NO | Thru-hole, Right Angle | Sealed - IP40 | No/None | Off-Mom | 100.000 | Standard | 3.15mm | Side Actuated | Thru-hole | 7.00mm x 7.00mm | 130gf | Bulk | |||
50mA @ 12VDC | SPST-NO | Thru-hole, Right Angle | Sealed - IP40 | No/None | Off-Mom | 100.000 | Standard | 3.85mm | Side Actuated | Thru-hole | 7.00mm x 7.00mm | 130gf | Bulk | |||
50mA @ 12VDC | SPST-NO | Thru-hole, Right Angle | Sealed - IP40 | No/None | Off-Mom | 100.000 | Standard | 5.85mm | Side Actuated | Thru-hole | 7.50mm x 7.10mm | 130gf | Bulk | |||
50mA @ 12VDC | SPST-NO | Thru-hole, Right Angle | Sealed - IP40 | No/None | Off-Mom | 100.000 | Standard | 8.35mm | Side Actuated | Thru-hole | 7.50mm x 7.10mm | 130gf | Bulk | |||
50mA @ 12VDC | SPST-NO | Thru-hole, Right Angle | Sealed - IP40 | No/None | Off-Mom | 100.000 | Standard | 3.15mm | Side Actuated | Thru-hole | 7.50mm x 7.10mm | 160gf | Bulk | |||
50mA @ 12VDC | SPST-NO | Thru-hole, Right Angle | Sealed - IP40 | No/None | Off-Mom | 100.000 | Standard | 3.85mm | Side Actuated | Thru-hole | 7.50mm x 7.10mm | 160gf | Bulk | |||
50mA @ 12VDC | SPST-NO | Thru-hole, Right Angle | Sealed - IP40 | No/None | Off-Mom | 100.000 | Standard | 5.85mm | Side Actuated | Thru-hole | 7.50mm x 7.10mm | 160gf | Bulk | |||
50mA @ 12VDC | SPST-NO | Thru-hole, Right Angle | Sealed - IP40 | No/None | Off-Mom | 100.000 | Standard | 6.85mm | Side Actuated | Thru-hole | 7.50mm x 7.10mm | 160gf | Bulk | |||
50mA @ 12VDC | SPST-NO | Thru-hole, Right Angle | Sealed - IP40 | No/None | Off-Mom | 100.000 | Standard | 8.35mm | Side Actuated | Thru-hole | 7.50mm x 7.10mm | 160gf | Bulk | |||
50mA @ 12VDC | SPST-NO | Thru-hole | Sealed - IP40 | No/None | Off-Mom | 100.000 | Standard | 7.00mm | Top Actuated | Thru-hole | 6.00mm x 6.00mm | 260gf | Bulk | |||
50mA @ 12VDC | SPST-NO | Thru-hole | Sealed - IP40 | No/None | Off-Mom | 100.000 | Standard | 9.50mm | Top Actuated | Thru-hole | 6.00mm x 6.00mm | 260gf | Bulk | |||
50mA @ 12VDC | SPST-NO | Thru-hole | Sealed - IP40 | 260gf | Bulk |
