Military Serien
MIL-S-83731 Kippschalter

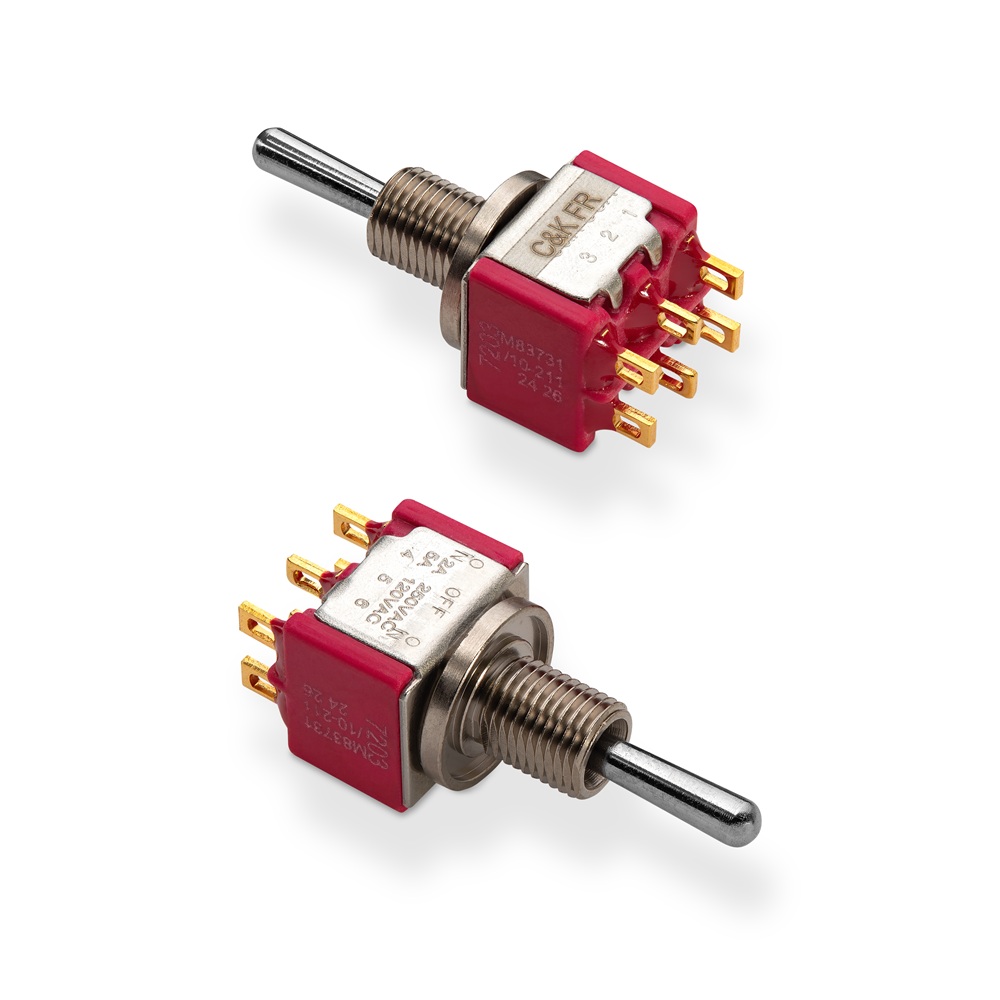

Toggle Military product image

Die Abbildung zeigt die Produktserie und stellt möglicherweise nicht die tatsächliche Teilenummer dar

img description Toolbox
img description Downloads
Technischen Support kontaktieren
Händlerbestand prüfen
Muster anfordern
Die Militär-Kippschalter von C&K sind hochwertige, robuste Schalter, die nach der Spezifikation MIL-S-83731 qualifiziert sind. Die Schalter bestehen aus flammhemmendem Gehäusematerial mit selektiver 50-Mikrozoll-Goldkontaktbeschichtung und Epoxid-gekapselten Anschlüssen für Prozesskompatibilität. Mit einer langen Lebensdauer von 10.000 Zyklen arbeiten die Schalter der Militärserie von C&K erfolgreich sowohl bei hohen als auch bei niedrigen Temperaturen, und das auch in den rauesten Umgebungen.

Eigenschaften und Vorteile

  • 50 μ inch selective gold contact plating
  • Epoxy sealed terminals for process compatibility
  • Qualified to MIL-S-83731

Typische Anwendungsbereiche

  • Commercial aircraft
  • Industrial/ Process control
  • Mass transportation
  • Military/ Aerospace
  • Network systems

Technische Daten

  • Contact Rating:

    See datasheet for ratings

  • Contact Resistance:

    Gold contact material: 0.5 VA max. @ 28 V AC or DC max or 5 A @ 120 V AC or 28 V DC

  • Dielectric Strength:

    1000 Vrms min. @ sea level

  • Electrical Life:

    10,000 cycles at specified high and low temperatures

  • Insulation Resistance:

    10⁹ ohms min.

  • Operating Temperature:

    –25ºC to 71ºC

  • Solderability:

    Per MIL-STD-202F method 208D, or EIA RS-186E method 9 (1 hour steam aging)

= Am häufigsten verwendet

Ausgewählte Teile vergleichen
Part Number
M83731/10-211
M83731/10-212
M83731/10-261
M83731/10-262
M83731/10-271
M83731/10-272
M83731/10-311
M83731/10-312
M83731/10-321
M83731/10-351
M83731/13-211
M83731/13-261
M83731/13-271
M83731/15-211
M83731/15-231
M83731/15-261
M83731/15-271
M83731/16-231
M83731/16-261
M83731/16-311
M83731/9-212
M83731/9-232
M83731/9-261
M83731/9-272
M83731/9-311
Current Rating Circuit Mounting Type Sealing Illumination Switch Function Electrical Life Cycles Voltage Rating - AC Voltage Rating - DC Actuator Type Actuator Length Termination Style Bushing Thread Additional Features Panel Cutout Dimensions Packaging
5A (AC/DC) DPDT Panel Mount, Rear, Threaded Unsealed On-Off-On 10.000 115V 28V Standard Round 10.41mm Solder Lug 1/4 - 40 Epoxy Sealed Terminals Circular - 6.35mm Dia Tray
5A (AC/DC) DPDT Panel Mount, Rear, Threaded Unsealed On-Off-On 10.000 115V 28V Standard Round 10.41mm Thru-hole 1/4 - 40 Epoxy Sealed Terminals Circular - 6.35mm Dia Tray
5A (AC/DC) DPDT Panel Mount, Rear, Threaded Unsealed On-Mom 10.000 115V 28V Standard Round 10.41mm Solder Lug 1/4 - 40 Epoxy Sealed Terminals Circular - 6.35mm Dia Tray
5A (AC/DC) DPDT Panel Mount, Rear, Threaded Unsealed On-Mom 10.000 115V 28V Standard Round 10.41mm Thru-hole 1/4 - 40 Epoxy Sealed Terminals Circular - 6.35mm Dia Tray
5A (AC/DC) DPDT Panel Mount, Rear, Threaded Unsealed Mom-Off-Mom 10.000 115V 28V Standard Round 10.41mm Solder Lug 1/4 - 40 Epoxy Sealed Terminals Circular - 6.35mm Dia Tray
5A (AC/DC) DPDT Panel Mount, Rear, Threaded Unsealed Mom-Off-Mom 10.000 115V 28V Standard Round 10.41mm Thru-hole 1/4 - 40 Epoxy Sealed Terminals Circular - 6.35mm Dia Tray
5A (AC/DC) DPDT Panel Mount, Rear, Threaded Unsealed On-Off-Mom 10.000 115V 28V Standard Round 10.41mm Solder Lug 1/4 - 40 Epoxy Sealed Terminals Circular - 6.35mm Dia Tray
5A (AC/DC) DPDT Panel Mount, Rear, Threaded Unsealed On-Off-Mom 10.000 115V 28V Standard Round 10.41mm Thru-hole 1/4 - 40 Epoxy Sealed Terminals Circular - 6.35mm Dia Tray
5A (AC/DC) SP3T Panel Mount, Rear, Threaded Unsealed On-On-On 10.000 115V 28V Standard Round 10.41mm Solder Lug 1/4 - 40 Jumper needed to achieve triple throw Circular - 6.35mm Dia Tray
5A (AC/DC) SP3T Panel Mount, Rear, Threaded Unsealed Mom-On-Mom 10.000 115V 28V Standard Round 10.41mm Solder Lug 1/4 - 40 Jumper needed to achieve triple throw Circular - 6.35mm Dia Tray
5A (AC/DC) SPDT Thru-hole, Right Angle, Vertical Unsealed On-Off-On 10.000 115V 28V Standard Round 6.90mm Thru-hole Unthreaded Epoxy Sealed Terminals Tray
5A (AC/DC) SPDT Thru-hole, Right Angle, Vertical Unsealed On-Mom 10.000 115V 28V Standard Round 6.90mm Thru-hole Unthreaded Epoxy Sealed Terminals Tray
5A (AC/DC) SPDT Thru-hole, Right Angle, Vertical Unsealed Mom-Off-Mom 10.000 115V 28V Standard Round 6.90mm Thru-hole Unthreaded Epoxy Sealed Terminals Tray
5A (AC/DC) SPDT Thru-hole, Right Angle Unsealed On-Off-On 10.000 115V 28V Standard Round 6.90mm Thru-hole Unthreaded Epoxy Sealed Terminals Tray
5A (AC/DC) SPDT Thru-hole, Right Angle Unsealed On-On 10.000 115V 28V Standard Round 6.90mm Thru-hole Unthreaded Epoxy Sealed Terminals Tray
5A (AC/DC) SPDT Thru-hole, Right Angle Unsealed On-Mom 10.000 115V 28V Standard Round 6.90mm Thru-hole Unthreaded Epoxy Sealed Terminals Tray
5A (AC/DC) SPDT Thru-hole, Right Angle Unsealed Mom-Off-Mom 10.000 115V 28V Standard Round 6.90mm Thru-hole Unthreaded Epoxy Sealed Terminals Tray
5A (AC/DC) DPDT Thru-hole, Right Angle Unsealed On-On 10.000 115V 28V Standard Round 6.90mm Thru-hole Unthreaded Epoxy Sealed Terminals Tray
5A (AC/DC) DPDT Thru-hole, Right Angle Unsealed On-Mom 10.000 115V 28V Standard Round 6.90mm Thru-hole Unthreaded Epoxy Sealed Terminals Tray
5A (AC/DC) SPDT Thru-hole, Right Angle Unsealed On-Off-Mom 10.000 115V 28V Standard Round 6.90mm Thru-hole Unthreaded Epoxy Sealed Terminals Tray
5A (AC/DC) SPDT Panel Mount, Rear, Threaded Unsealed On-Off-On 10.000 115V 28V Standard Round 10.41mm Thru-hole 1/4 - 40 Epoxy Sealed Terminals Circular - 6.35mm Dia Tray
5A (AC/DC) SPDT Panel Mount, Rear, Threaded Unsealed On-On 10.000 115V 28V Standard Round 10.41mm Thru-hole 1/4 - 40 Epoxy Sealed Terminals Circular - 6.35mm Dia Tray
5A (AC/DC) SPDT Panel Mount, Rear, Threaded Unsealed On-Mom 10.000 115V 28V Standard Round 10.41mm Solder Lug 1/4 - 40 Epoxy Sealed Terminals Circular - 6.35mm Dia Tray
5A (AC/DC) SPDT Panel Mount, Rear, Threaded Unsealed Mom-Off-Mom 10.000 115V 28V Standard Round 10.41mm Thru-hole 1/4 - 40 Epoxy Sealed Terminals Circular - 6.35mm Dia Tray
5A (AC/DC) SPDT Panel Mount, Rear, Threaded Unsealed On-Off-Mom 10.000 115V 28V Standard Round 10.41mm Solder Lug 1/4 - 40 Epoxy Sealed Terminals Circular - 6.35mm Dia Tray
