KMR6 Serien
Mikrominiatur-SMT-Aufsatz betätigt IP67

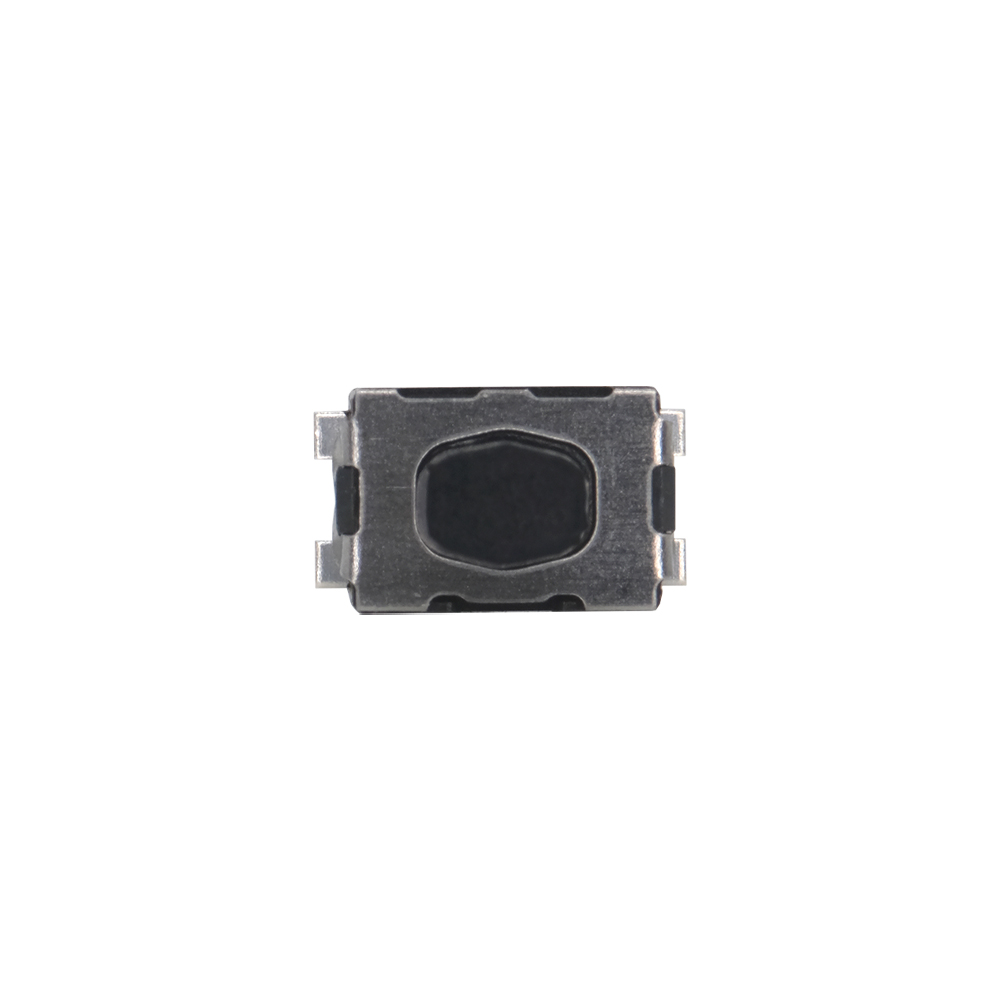

Tactile KMR6 product image Tactile KMR6 product image Tactile KMR6 product image
Tactile KMR6 product image
Tactile KMR6 product image
Tactile KMR6 product image

Die Abbildung zeigt die Produktserie und stellt möglicherweise nicht die tatsächliche Teilenummer dar

img description Toolbox
img description Downloads
Technischen Support kontaktieren
Händlerbestand prüfen
Muster anfordern
Der oben betätigte Mikrominiatur-Schalter für die Oberflächenmontage der KMR6-Serie von C&K ist IP67-konform und weist gute Fähigkeiten bei geringer Stromstärke auf. Durch seine lange Lebensdauer und seine hervorragende Haptik ist er ideal für industrielle, medizinische und Automobilanwendungen geeignet, die zuverlässig unter den anspruchsvollsten Bedingungen funktionieren müssen.

Eigenschaften und Vorteile

  • Excellent tactile feeling
  • IP67
  • Long Life version

Typische Anwendungsbereiche

  • Automotive
  • Industrial electronics
  • Medical equipment

Technische Daten

  • Contact Rating:

    10mA (Gold); 50mA (Silver)

  • Contact resistance:

    < 100 milliohms

  • Dielectric Strength:

    < 250 Vrms

  • Electrical Life:

    between 100,000 and 300,000 cycles

  • Insulation Resistance:

    > 1,000 megohms

  • Operating Temperature:

    -40°C to 85°C (125°C for gold version)

  • Solderability:

    Infrared Reflow Soldering in accordance with IEC61760-1

= Am häufigsten verwendet

Ausgewählte Teile vergleichen
Part Number
KMR611NGLFS
KMR611NGULCLFS
KMR613NGLFG
KMR613NGULCLFG
KMR621NGLFS
KMR621NGULCLFS
KMR623NGLFG
KMR623NGULCLFG
KMR631NGLFS
KMR631NGULCLFS
KMR632NGLFS
KMR632NGULCLFS
KMR633NGLFG
KMR633NGULCLFG
KMR641NGLFS
KMR641NGULCLFS
KMR642NGLFS
KMR642NGULCLFS
KMR643NGLFG
KMR643NGULCLFG
Current Rating Circuit Mounting Type Sealing Illumination Switch Function Electrical Life Cycles Actuator Type Actuator Height off PCB, from Pins Actuator Orientation Termination Style Footprint Illumination Voltage (Nominal) Illumination Type, Color Operating Force Additional Features Packaging
50mA @ 32VDC SPST -NO Surface Mount Sealed - IP67 No/None Off-Mom 200.000 Standard Top Actuated Gull Wing 4,2 mm x 2,8 mm 120 gf Tape & Reel
50mA @ 32VDC SPST-NO Surface Mount Sealed - IP67 No/None Off-Mom 200.000 Standard Top Actuated Gull Wing 4,2 mm x 2,8 mm 120 gf Tape & Reel
50mA @ 32VDC SPST-NO Surface Mount Sealed - IP67 No/None Off-Mom 200.000 Standard Top Actuated Gull Wing 4,2 mm x 2,8 mm 120 gf Tape & Reel
50mA @ 32VDC SPST-NO Surface Mount Sealed - IP67 No/None Off-Mom 200.000 Standard Top Actuated Gull Wing 4,2 mm x 2,8 mm 120 gf Tape & Reel
50mA @ 32VDC SPST-NO Surface Mount Sealed - IP67 No/None Off-Mom 200.000 Standard Top Actuated Gull Wing 4,2 mm x 2,8 mm 200 gf Tape & Reel
50mA @ 32VDC SPST-NO Surface Mount Sealed - IP67 No/None Off-Mom 200.000 Standard Top Actuated Gull Wing 4,2 mm x 2,8 mm 200 gf Tape & Reel
50mA @ 32VDC SPST-NO Surface Mount Sealed - IP67 No/None Off-Mom 200.000 Standard Top Actuated Gull Wing 4,2 mm x 2,8 mm 200 gf Tape & Reel
50mA @ 32VDC SPST-NO Surface Mount Sealed - IP67 No/None Off-Mom 200.000 Standard Top Actuated Gull Wing 4,2 mm x 2,8 mm 200 gf Tape & Reel
50mA @ 32VDC SPST-NO Surface Mount Sealed - IP67 No/None Off-Mom 150.000 Standard Top Actuated Gull Wing 4,2 mm x 2,8 mm 300 gf Tape & Reel
50mA @ 32VDC SPST-NO Surface Mount Sealed - IP67 No/None Off-Mom 150.000 Standard Top Actuated Gull Wing 4,2 mm x 2,8 mm 300 gf Tape & Reel
50mA @ 32VDC SPST-NO Surface Mount Sealed - IP67 No/None Off-Mom 300.000 Standard Top Actuated Gull Wing 4,2 mm x 2,8 mm 300 gf Tape & Reel
50mA @ 32VDC SPST-NO Surface Mount Sealed - IP67 No/None Off-Mom 300.000 Standard Top Actuated Gull Wing 4,2 mm x 2,8 mm 300 gf Tape & Reel
50mA @ 32VDC SPST-NO Surface Mount Sealed - IP67 No/None Off-Mom 150.000 Standard Top Actuated Gull Wing 4,2 mm x 2,8 mm 300 gf Tape & Reel
50mA @ 32VDC SPST-NO Surface Mount Sealed - IP67 No/None Off-Mom 150.000 Standard Top Actuated Gull Wing 4,2 mm x 2,8 mm 300 gf Tape & Reel
50mA @ 32VDC SPST-NO Surface Mount Sealed - IP67 No/None Off-Mom 100.000 Standard Top Actuated Gull Wing 4,2 mm x 2,8 mm 400 gf Tape & Reel
50mA @ 32VDC SPST-NO Surface Mount Sealed - IP67 No/None Off-Mom 100.000 Standard Top Actuated Gull Wing 4,2 mm x 2,8 mm 400 gf Tape & Reel
50mA @ 32VDC SPST-NO Surface Mount Sealed - IP67 No/None Off-Mom 200.000 Standard Top Actuated Gull Wing 4,2 mm x 2,8 mm 400 gf Tape & Reel
50mA @ 32VDC SPST-NO Surface Mount Sealed - IP67 No/None Off-Mom 200.000 Standard Top Actuated Gull Wing 4,2 mm x 2,8 mm 400 gf Tape & Reel
50mA @ 32VDC SPST-NO Surface Mount Sealed - IP67 No/None Off-Mom 100.000 Standard Top Actuated Gull Wing 4,2 mm x 2,8 mm 400 gf Tape & Reel
50mA @ 32VDC SPST-NO Surface Mount Sealed - IP67 No/None Off-Mom 100.000 Standard Top Actuated Gull Wing 4,2 mm x 2,8 mm 400 gf Tape & Reel
